Hydraulic Seals vs Pneumatic Seals and Their Key Differences?

Number of hits：52026-10-26 15:35:42　

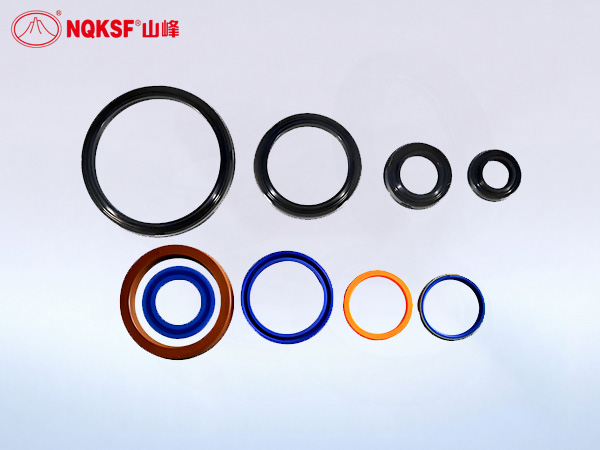

Hydraulic seals and pneumatic seals both prevent leakage between moving or stationary components, but they operate under different conditions. Hydraulic systems use liquid, usually oil, to transmit power, while pneumatic systems use compressed air or gas. These differences affect seal design, material selection, friction, and service life.

Pressure and Sealing Requirements

Hydraulic systems commonly operate at relatively high pressures. Their seals must prevent fluid leakage and resist damage caused by pressure, including extrusion into gaps between components.

Pneumatic systems often operate at lower pressures, but compressed air can escape through small clearances. Their seals must provide effective sealing while maintaining suitable friction and movement characteristics.

Not every hydraulic or pneumatic seal is designed for every pressure level. The actual operating pressure and seal design should always be checked.

Movement and Friction

Hydraulic seals are used in equipment such as cylinders, valves, and hydraulic machinery. Depending on the application, they may operate under reciprocating or other types of movement.

Pneumatic seals are commonly found in air cylinders and pneumatic actuators, where frequent reciprocating movement is typical. Low friction can be especially important for smooth movement and responsive operation.

Seal geometry, contact pressure, surface finish, and lubrication all influence friction and wear in both systems.

Material Selection

Material compatibility is essential for reliable sealing.

NBR is commonly used in many oil-based applications and can also be suitable for certain pneumatic seals. However, the correct compound depends on the medium, temperature, and operating conditions.

Polyurethane is widely used in hydraulic sealing applications because suitable grades can offer good wear resistance and mechanical strength. Other elastomers may be appropriate depending on the application.

For pneumatic systems, material selection must also account for compressed air quality, moisture, lubrication practices, and operating temperature.

Can Hydraulic and Pneumatic Seals Be Interchanged?

Not simply because their dimensions are similar. The seal profile, groove design, pressure requirements, movement, friction, and material must all be suitable for the intended system.

Using an unsuitable seal can lead to leakage, excessive friction, premature wear, or unstable operation.

Before selecting a replacement, confirm the original seal specification and the equipment's operating conditions. If the exact model is unknown, provide the dimensions, application, medium, pressure, and movement type to the seal supplier.
