How to Select Automotive Oil Seals for Different Applications?

Number of hits：52026-10-26 15:39:50　

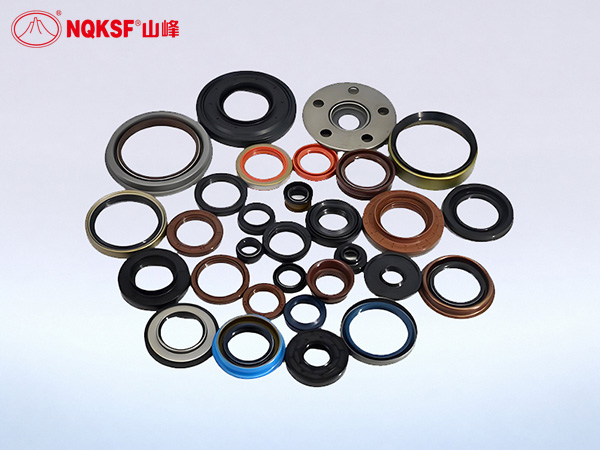

Automotive oil seals help retain lubricants and protect rotating components from contamination. However, engine, transmission, and wheel-end applications can have different operating conditions. Selecting the right seal requires more than matching its dimensions to an existing part.

Engine Oil Seals

Crankshaft and camshaft oil seals operate around rotating engine shafts. Depending on their position, they may be exposed to engine oil, elevated temperatures, continuous rotation, and changing operating conditions.

Material selection should account for the actual temperature and lubricant. NBR is suitable for many general oil-sealing applications, while FKM may be preferred when higher temperature resistance or compatibility with particular fluids is required.

The seal profile and shaft condition are equally important. Excessive shaft wear, surface damage, or misalignment can contribute to leakage even when the material is suitable.

Transmission Oil Seals

Transmission seals must be compatible with the specified transmission fluid and operating environment. Different transmission designs may use different lubricants, temperatures, shaft speeds, and seal configurations.

A seal that performs well with one type of oil may not be suitable for another fluid formulation. Before replacing a transmission seal, confirm the required dimensions, material, profile, and fluid compatibility.

Wheel-End and Axle Seals

Wheel-end and axle sealing applications may involve grease or gear oil, depending on the assembly. They can also be exposed to road dust, moisture, mud, and changing environmental conditions.

In these applications, contamination protection is particularly important. Some designs incorporate additional sealing features to help prevent dirt and moisture from reaching bearings or other components. The appropriate structure depends on the assembly and its operating environment.

Key Factors Before Ordering

When selecting automotive oil seals, check the following:

Dimensions: Confirm the shaft diameter, housing bore, and seal width.

Material: Match the elastomer to the operating temperature and fluid.

Structure: Check the lip configuration, case design, and any auxiliary sealing features.

Operating conditions: Consider shaft speed, surface condition, alignment, and external contamination.

Part compatibility: Verify the original part number or equipment specification where possible.

Automotive oil seals are not interchangeable simply because they have similar dimensions. A suitable replacement must match the application's requirements.

Providing the vehicle or equipment details, original part number, dimensions, and operating conditions can help reduce selection errors and improve sealing reliability.
