How a Rotary Shaft Oil Seal Works and Its Main Components?

Number of hits：62026-10-26 15:31:39　

Rotary shaft oil seal helps retain lubricant around a rotating shaft while limiting the entry of dust and other contaminants. Its performance depends on several factors, including the sealing lip, spring, outer case, and overall design. Understanding these components makes it easier to select the right seal for an application.

The Main Sealing Lip

The main lip is the key component responsible for controlling oil or grease leakage. During operation, it contacts the rotating shaft and maintains a sealing interface. A thin lubricant film at the contact area helps reduce friction and wear.

The lip must maintain suitable contact with the shaft without generating excessive frictional heat. Its performance depends on the seal material, shaft surface condition, rotational speed, temperature, and lubrication.

The Role of the Garter Spring

Many rotary shaft oil seals include a garter spring around the main sealing lip. The spring helps maintain radial contact force against the shaft, supporting sealing performance as the lip experiences normal wear and operating changes.

However, not all oil seals use a spring. The required design depends on the seal profile and operating conditions.

The Metal Case and Outer Diameter

The metal case supports the seal structure and helps maintain its shape during installation and operation. Depending on the design, the outer diameter may be exposed metal or covered with rubber.

A rubber-covered outer diameter can help provide static sealing against the housing bore and accommodate minor surface irregularities. Correct housing dimensions and installation remain essential for preventing leakage around the outside of the seal.

The Function of the Dust Lip

Double-lip oil seals commonly have an auxiliary lip outside the main sealing lip. Its purpose is to help prevent dust and other contaminants from reaching the primary sealing area.

This feature is particularly useful in equipment exposed to dirt or airborne particles. However, a dust lip does not automatically make a standard oil seal suitable for water immersion or every wet operating environment.

Choosing the Right Structure

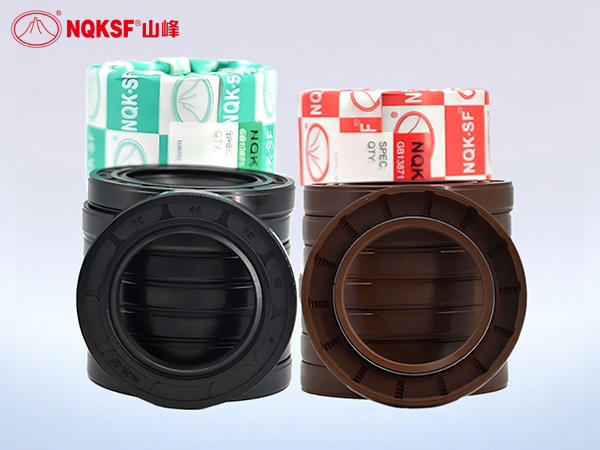

Oil seals are available in different profiles, materials, and lip configurations. NBR is widely used in many general oil-sealing applications, while FKM may be suitable for applications requiring greater heat resistance or compatibility with certain fluids.

When selecting a seal, consider the shaft diameter, housing dimensions, speed, temperature, lubricant, and external contamination. Correct installation and a suitable shaft surface are also important for reliable operation.

A well-matched oil seal combines the right structure and material with suitable operating conditions. Choosing by dimensions alone may not be enough to achieve the expected service life.
