Oil Seals vs O-Rings: Key Differences and Typical Applications

Number of hits：472026-10-22 09:36:33　

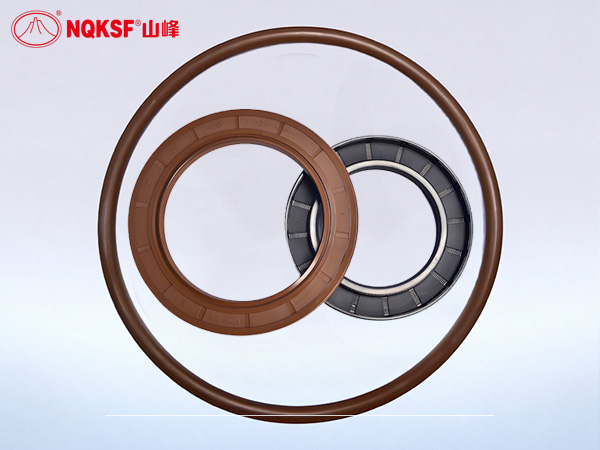

Oil seals and O-rings are both widely used in industrial and automotive sealing systems, but they are designed for different sealing tasks. A conventional rotary shaft oil seal is commonly used to retain lubricant around a rotating shaft, while an O-ring is a flexible elastomer ring that seals between mating surfaces through compression.

Understanding their structural differences helps engineers, maintenance teams, and purchasing professionals select the appropriate seal for each application.

What Is a Rotary Shaft Oil Seal?

A conventional rotary shaft oil seal is designed to retain lubricants or exclude contaminants around a rotating shaft. Many common designs feature an elastomer sealing lip, a metal case, and a garter spring that helps maintain radial contact force at the primary lip.

The sealing lip operates against the shaft surface while accommodating normal operating conditions within the seal's design limits. The exact construction varies by seal type, material, speed, pressure, and application.

Rotary shaft oil seals are commonly used in gearboxes, electric motors, pumps, automotive assemblies, and other equipment with rotating shafts.

What Is an O-Ring?

An O-ring has a circular cross-section and is usually installed in a designed groove. When assembled, it is compressed between mating surfaces to create a seal.

O-rings are widely used in static applications, such as sealing covers, connectors, flanges, and housings. They can also be used in certain reciprocating or dynamic applications when the groove design, material, lubrication, surface finish, and operating conditions are suitable.

Unlike a conventional rotary shaft oil seal, an O-ring does not normally rely on a dedicated sealing lip and garter spring to retain lubricant around a rotating shaft.

Key Differences Between Oil Seals and O-Rings

Sealing structure: A conventional rotary shaft oil seal uses a shaped lip that contacts the shaft. An O-ring relies on compression within a gland or groove.

Typical movement: Rotary shaft oil seals are designed for rotating shaft applications. O-rings are commonly used in static joints and can also serve in specified dynamic applications.

Installation requirements: Oil seals require attention to lip orientation, shaft condition, installation depth, and protection against lip damage. O-rings require a correctly designed groove, suitable squeeze, and protection from cutting, twisting, or excessive stretching during assembly.

Operating limitations: Both products have limits determined by material, temperature, fluid compatibility, pressure, and movement. Neither should be selected based on shape or material alone.

Can an O-Ring Replace a Rotary Shaft Oil Seal?

Not as a direct replacement in most conventional rotary shaft sealing arrangements. The two products have different sealing mechanisms and installation requirements.

An O-ring may be suitable for a rotating application if the equipment has been specifically designed for that type of seal. However, placing an O-ring into a space intended for a lip seal does not automatically provide equivalent sealing performance.

The same principle applies in reverse: a rotary shaft oil seal is not necessarily suitable for replacing an O-ring in a static connection or a groove designed for an O-ring.

How to Choose the Right Seal

Start by identifying the movement at the sealing interface. Determine whether the application involves a rotating shaft, reciprocating motion, or a stationary joint.

Next, confirm the fluid, operating temperature, pressure, shaft or bore dimensions, and available installation space. For an O-ring, groove dimensions and compression are especially important. For a rotary shaft oil seal, shaft diameter, surface condition, runout, installation depth, and lip design must also be considered.

Material selection is another essential step. NBR is often used in applications involving many mineral oils, while FKM may be appropriate for certain higher-temperature or chemically demanding conditions. Compatibility must always be confirmed for the actual fluid and operating environment.

Oil seals and O-rings serve different roles in a sealing system. Conventional rotary shaft oil seals are generally selected for rotating shaft sealing, while O-rings are widely used in static joints and in some specifically designed dynamic applications.

Choosing between them requires more than comparing dimensions. The movement, groove or housing design, fluid, temperature, pressure, and installation requirements should all match the intended sealing function.
