What Are the Applications of Skeleton Oil Seals?

Number of hits：622026-09-22 13:57:59　

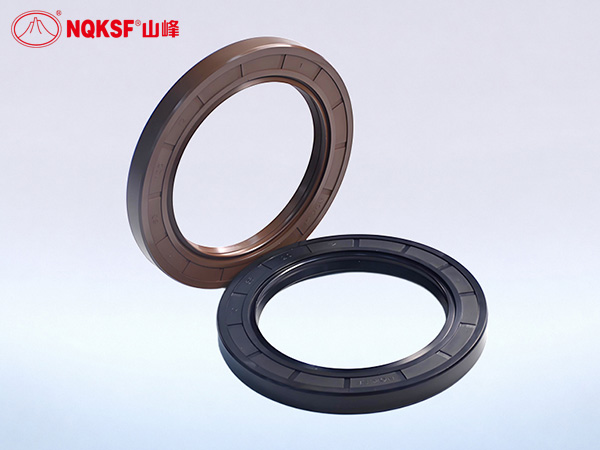

Skeleton oil seals, also known as rotary shaft oil seals, are mainly used on rotating shafts where lubricants need to be retained and external contaminants need to be kept away from the machine interior. Their applications cover a wide range of equipment, including electric motors, gearboxes, pumps, fans, automotive systems, agricultural machinery, construction equipment, mining machinery and industrial power transmission systems.

The reason skeleton oil seals appear in so many different machines is quite straightforward. A rotating shaft often works together with bearings, gears or other moving parts that require oil or grease for lubrication. The lubricant needs to stay inside the equipment while the shaft continues to rotate. At the same time, dust, water and other contaminants from outside should be prevented from reaching the bearing or lubrication area. The sealing lip runs against the rotating shaft and creates a controlled sealing interface, allowing the shaft to rotate while helping separate the lubricant from the external environment.

In electric motors and gearboxes, oil seals are commonly positioned around shaft extensions or near bearing areas. Their role is generally to retain grease or oil and reduce the entry of outside contamination. Pumps and fans can have similar requirements, although the actual seal selection depends on the medium, shaft speed, temperature and equipment design. A general-purpose seal suitable for one pump should not automatically be assumed to work under every pump condition.

Automotive, agricultural and construction equipment can present a different type of sealing environment. Wheel hubs, transmissions, driveline systems and other rotating assemblies may need to retain lubricant while being exposed to dust, mud, water or other contaminants. This is particularly relevant to agricultural and off-highway machinery, where contamination can be a regular part of the working environment.

Industrial machinery provides another large area of application. Gear reducers, industrial pumps, compressors, fans, rolling equipment and various transmission systems can all require rotary shaft sealing when a rotating shaft passes between an internal lubricated area and the outside environment. In mining, steel and paper production, the operating conditions may involve heavier contamination, continuous operation or higher mechanical loads. Under these conditions, seal selection needs to consider more than basic dimensions. Shaft speed, temperature, lubricant, contamination level and shaft condition can all affect the appropriate seal design.

For this reason, the application range of a skeleton oil seal is better understood by looking at the working conditions rather than simply listing industries. Wherever a machine has a rotating shaft and needs to retain oil or grease while limiting external contamination, a suitable rotary shaft seal may be required. However, this does not mean that one oil seal design is suitable for every application. A seal used in an electric motor may have very different requirements from one operating on a high-speed pump, a high-temperature machine or heavy construction equipment.

When selecting a skeleton oil seal, shaft diameter, housing bore and seal width are only the starting points. Shaft speed, operating temperature, lubricant, pressure, contamination and shaft surface condition should also be considered. The wide application range of skeleton oil seals comes from the flexibility of the sealing concept, but the actual seal still needs to match the working conditions of the equipment.
