Should an Oil Seal Inside Diameter be Smaller Than the Shaft Diameter?

Number of hits：772026-09-18 10:48:20　

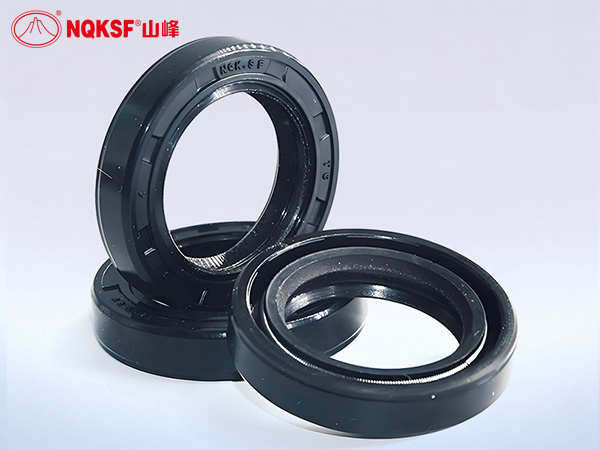

For a conventional rotary shaft oil seal, the sealing lip is normally designed to have a smaller working diameter than the shaft so that a certain amount of radial interference is created after installation. However, it is not accurate to simply say that the smaller the oil seal inside diameter, the better the sealing performance.

Once the oil seal is installed, the sealing lip contacts the rotating shaft and creates radial contact pressure. This contact is necessary to maintain a continuous sealing interface during operation.

At the same time, excessive interference is not desirable. If the lip is too tight against the shaft, contact pressure and friction can increase, which may generate additional heat and accelerate lip wear. This becomes more important in high-speed applications, where frictional heat can have a direct effect on seal performance and service life.

This is why oil seal selection should not be based only on comparing one inside diameter with one shaft diameter. The actual fit depends on the seal design, lip geometry, material, spring arrangement and the dimensional tolerance of the shaft. A shaft that is larger than the specified range can increase lip interference and operating temperature, while an undersized shaft may not provide enough lip interference to maintain an effective seal.

The condition of the shaft surface also matters. An oil seal does not work properly simply because its dimensions match the shaft. Shaft hardness, surface finish, machining characteristics and the condition of the shaft edge all affect the contact between the lip and the shaft. A rough or damaged shaft surface can increase wear on the sealing lip, while burrs or sharp edges can damage the lip during installation.

So the more accurate answer is that the working diameter of a conventional rotary oil seal lip is normally smaller than the shaft diameter to create the required radial interference, but the seal should not simply be made smaller and smaller. The correct interference depends on the seal design, shaft diameter and tolerance, sealing material, rotational speed and operating temperature.

When selecting an oil seal, it is therefore better to confirm that the seal specification is designed for the actual shaft diameter rather than looking only at whether the nominal inside diameter is smaller. Standard seals can normally be selected according to the corresponding shaft size and manufacturer's specifications. High-speed, high-temperature or special applications require a more detailed check of the actual lip-to-shaft fit.
