What Factors Affect Oil Seal Interference Fit Design?

Number of hits：772026-09-15 09:58:55　

The interference fit of an oil seal is not simply a matter of making the seal slightly larger than the housing bore. Too much interference can make installation difficult and increase deformation or stress, while insufficient interference may cause the seal to move in the housing or leak around its outside diameter. The proper interference therefore needs to be considered together with the seal design, material, dimensions, housing and actual operating conditions.

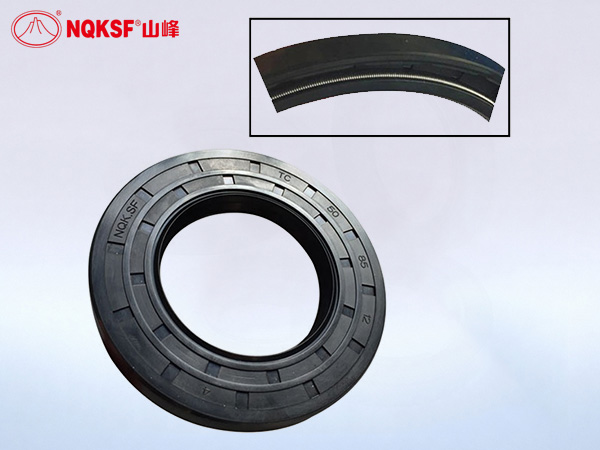

The first factor is the outside diameter design of the seal. A rubber-covered oil seal has some flexibility and can accommodate minor variations in the housing bore, while a metal-cased seal has a more rigid outside structure and places greater importance on housing dimensions and tolerances. The seal must have enough interference with the housing bore to remain securely seated and provide static sealing during operation. Shanfeng describes this interference fit as an important part of maintaining reliable sealing between the seal outside diameter and the housing bore.

Seal size also affects the appropriate interference. A value that works for a small oil seal cannot simply be applied to a much larger size. Housing material is another consideration because different materials expand at different rates as temperature changes. This becomes particularly relevant when an oil seal is installed in an aluminum housing or equipment operating at elevated temperatures. The actual fit at operating temperature may be different from the fit measured at room temperature.

Operating conditions also have a direct influence on the design. An oil seal is exposed to shaft rotation, vibration, eccentricity, temperature and the sealed medium during service. If the fit is excessively tight, installation can become more difficult and unnecessary stress may be introduced into the seal. In rotating applications, excessive interference in the sealing system can also contribute to friction and heat generation. On the other hand, insufficient interference may allow the seal to loosen or move in the housing. Shanfeng is rotary seal design guidance also highlights the importance of shaft diameter tolerances and maintaining the correct lip-to-shaft interference for reliable seal performance.

For this reason, oil seal interference fit should be treated as a complete design issue rather than a single dimensional calculation. Seal construction, outside diameter, housing bore, material, temperature, shaft speed, eccentricity and vibration all need to be considered. For standard oil seals, the manufacturer's dimensional specifications and recommended housing tolerances are usually the starting point. High-speed, high-temperature, large-diameter or special-housing applications may require additional engineering review rather than simply using the interference value of a standard size.

In practical applications, a properly designed oil seal should not only fit the housing during installation. It should remain securely positioned throughout operation while maintaining stable sealing performance without creating unnecessary friction, wear or heat.
