What is the Difference Between Static and Dynamic Sealing?

Number of hits：832026-09-14 11:18:38　

The main difference between static and dynamic sealing is whether relative movement occurs at the sealing interface. Static sealing prevents leakage between components that remain essentially stationary relative to each other, while dynamic sealing must maintain the barrier while a shaft, rod, or other component moves. This basic difference affects seal design, material selection, installation, and service life.

Static Sealing Relies Mainly on Compression

Static seals are commonly found at flanges, covers, valve connections, housings, and other fixed joints. An O-ring, for example, can be compressed between two stationary surfaces to create the sealing interface.

Because there is little intended movement, friction and wear are generally less significant than in dynamic applications. Material compatibility, groove dimensions, compression, pressure, and temperature become important parts of the selection process.

Static does not necessarily mean absolutely motionless. Equipment can still experience vibration, thermal expansion, or pressure-related movement, so these conditions may need to be considered during seal design.

Why is Dynamic Sealing More Demanding?

Dynamic sealing involves relative movement between the seal and its mating surface. The movement may be rotary, reciprocating, or oscillating.

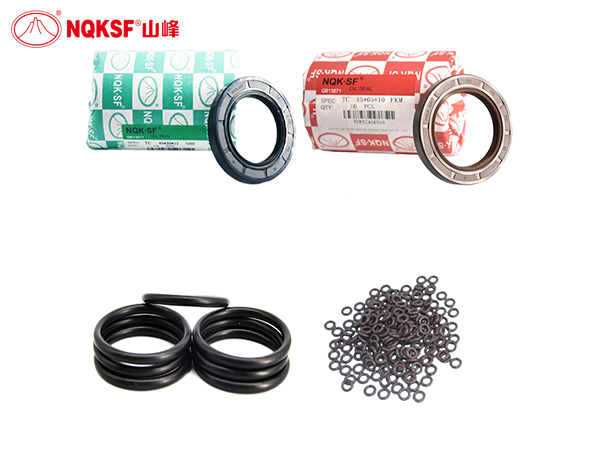

A rotary shaft seal, for example, works against a continuously rotating shaft, while a hydraulic seal may move repeatedly with a piston or rod. The seal therefore has to control leakage while also dealing with friction, heat, and wear. In dynamic O-ring applications, the condition of the mating surface and the availability of suitable lubrication become particularly important.

This is why a seal designed around a static application should not automatically be transferred to a dynamic application simply because the dimensions are the same. Groove geometry, compression, surface condition, and operating conditions may need to change. Dynamic sealing requires a practical balance between maintaining contact and controlling friction.

The Real Difference Is the Job the Seal Has to Perform

A static seal can be thought of as closing a gap between two fixed components. A dynamic seal has to maintain that barrier while one component keeps moving.

For this reason, seal selection should begin by asking whether relative movement exists and, if it does, what type of movement is involved.

Static applications generally place more emphasis on compression, fluid compatibility, and long-term material stability. Dynamic applications add friction, lubrication, speed, surface condition, and wear to the selection process.

Static and dynamic sealing are therefore not simply two different product categories. They represent two different operating conditions. Even when the same basic O-ring material is used, changing from a stationary joint to a moving interface can require a different sealing design and selection approach.
