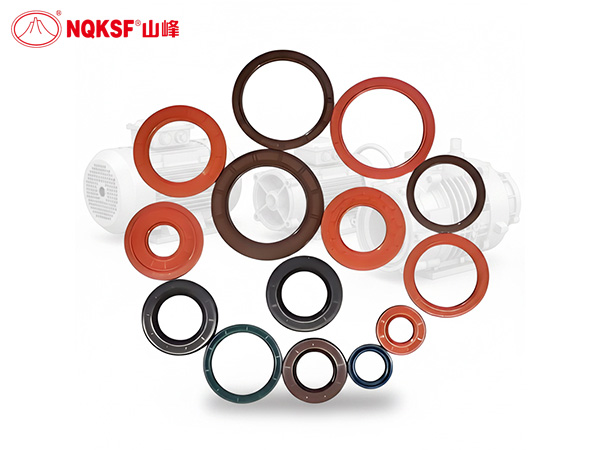

How to Choose an Electric Motor Oil Seal for Industrial Power Applications?

Number of hits：202026-09-10 09:19:01　

For industrial power equipment, an electric motor oil seal should be selected according to the relationship between motor speed, load, temperature, lubricant, shaft condition, and operating environment. The seal needs to protect the bearing or lubricant while maintaining stable contact with a continuously rotating shaft. A standard seal may be suitable for a general motor, but demanding power equipment may require a different material or lip construction.

Look at the Motor as a Working System

Industrial motors rarely operate under one isolated condition.

A motor driving a fan, pump, conveyor, gearbox, compressor, or other machine may run continuously for many hours. The resulting thermal load depends not only on motor speed but also on load, ventilation, bearing condition, ambient temperature, and surrounding equipment.

This means that selecting an oil seal simply from the motor's rated power is not enough.

The seal supplier should know the shaft diameter and rotational speed, but temperature and lubricant are equally important. If the motor runs continuously at elevated temperature, a material with greater heat resistance may be appropriate. If speed is high, lip friction and heat generation deserve additional attention.

Match the Seal to the Industrial Environment

The environment around the motor can change the sealing requirement considerably.

A motor installed inside a clean factory may mainly need to retain lubricant. A motor used near dust, water spray, mud, metal particles, or other contaminants needs additional protection around the sealing area.

In such cases, a double-lip oil seal may be considered because the secondary lip helps reduce contamination entering from the outside. However, the additional lip also introduces another contact surface, so friction and heat should be considered when the motor operates at high speed.

This is one reason seal profile selection should be connected to the actual environment rather than chosen as a standard accessory.

Material Should Follow the Duty Cycle

NBR remains widely used in general industrial sealing because it provides useful oil resistance and mechanical properties under moderate conditions. FKM becomes relevant when the motor operates at higher temperatures or encounters fluids for which greater chemical resistance is required. PTFE-based designs may be considered for specialized high-speed or low-friction applications.

The important distinction is that material and seal construction should be selected together. A heat-resistant material cannot compensate for excessive shaft runout, poor lubrication, an unsuitable lip geometry, or a damaged shaft.

For continuous-duty industrial equipment, the expected operating cycle is also important. A seal exposed to elevated temperature for several hours every day may face a very different aging process from one that reaches the same temperature only briefly.

Consider Maintenance Before Finalizing the Seal

Industrial motors are often designed around predictable maintenance intervals. An oil seal that requires frequent replacement can increase maintenance work even if the purchase price is low.

Before selecting a replacement, check whether the existing seal failed because of normal wear or because something else changed in the system. A worn shaft, bearing movement, excessive internal pressure, lubricant incompatibility, or contamination may be responsible for repeated leakage.

If the root cause remains, installing a different seal material may not solve the problem.

For this reason, a practical motor oil seal specification should contain more than a size code. Include shaft diameter, RPM, lubricant, operating temperature, environment, pressure condition, shaft surface, and expected duty cycle.

Once those factors are established, the choice between a standard NBR seal, an FKM seal, a double-lip configuration, or a specialized low-friction design becomes much more rational.

For industrial power applications, the goal is not to choose the most complicated seal. It is to choose the seal whose material, lip structure, and dimensional design match the actual motor operating conditions.
