What Are the Applications of NBR TC Oil Seals?

Number of hits：332026-08-18 11:24:16　

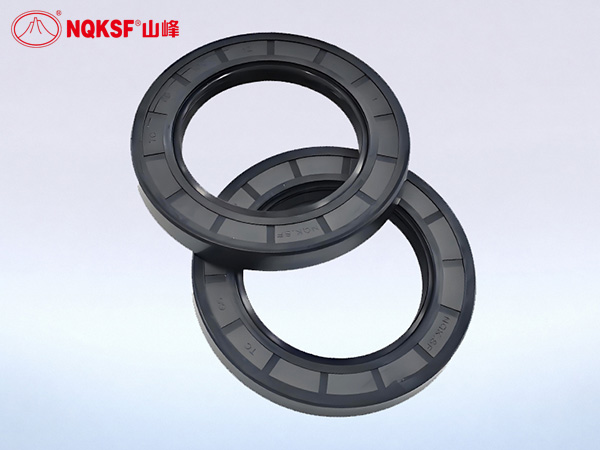

NBR TC oil seals are commonly used in rotating equipment operating with mineral oils, lubricants, or petroleum-based fluids, including electric motors, gearboxes, pumps, fans, and various industrial machines. Their suitability comes from the combination of NBR's oil resistance and the TC profile's ability to manage both lubricant retention and external contamination.

· Electric Motors

Electric motors have rotating shafts and often rely on lubricated bearings.

The NBR sealing lip can help retain lubricant around the shaft, while the outer dust lip of a TC seal helps reduce the entry of dust and moisture from the surrounding environment.

This makes NBR TC seals suitable for many standard motor applications.

· Gearboxes and Gear Reducers

Gearboxes provide another common application.

Their input and output shafts rotate continuously while gears and bearings depend on lubrication. Oil leakage around the shaft can reduce lubricant retention, while contaminants entering from outside may affect internal components.

The TC design addresses both sides of the sealing problem: the main lip helps retain lubricant, while the secondary lip provides additional contamination protection.

· Pumps and Fans

Pumps and fans also use rotating shafts and often operate continuously.

Where conventional mineral oils or lubricants are involved, NBR can be suitable for many standard conditions. The TC profile adds a practical barrier against external dust and moisture around the shaft area.

This is why rotary oil seals are commonly found in pumps, fans, and other rotating industrial equipment.

· Other Industrial Machinery

NBR TC oil seals can also be used in various industrial machines with rotating shafts, provided the operating conditions match the material and seal design.

The important point is that the application should not be selected by seal profile alone. Temperature, fluid type, shaft speed, pressure, shaft condition, and installation quality all affect suitability.

Standard NBR has good resistance to many oils and petroleum-based hydraulic fluids, but it is not intended for every high-temperature or chemically aggressive environment. Shanfeng lists a general temperature range of approximately -40°C to 125°C for its standard NBR oil-seal material, while the actual limit depends on the specific compound and seal design.

The Practical Takeaway

NBR TC oil seals are a logical option when the application combines a rotating shaft, conventional oil-based lubrication, and moderate operating conditions.

Their application is therefore not limited to one type of machine. They are suited to a broader group of rotating systems where the seal needs to retain lubricant while helping keep external contaminants away from the sealing area.
