What Are the Applications of FKM TC Oil Seals?

Number of hits：272026-08-20 09:40:14　

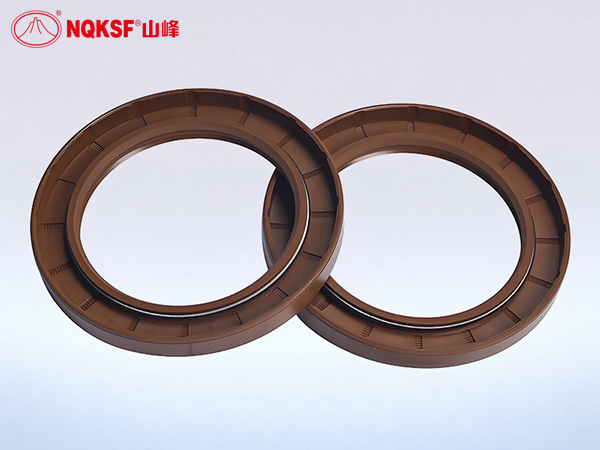

FKM TC oil seals are mainly used in rotating equipment where higher temperature resistance, oil compatibility, or chemical resistance is required. Typical applications include automotive engines and transmissions, industrial pumps, compressors, gear-driven equipment, and selected high-temperature machinery. FKM is known for its resistance to heat, oils, gasoline, petroleum-based hydraulic fluids, and various hydrocarbon-based media.

· IAutomotive Engines: Heat and Oil at the Same Time

Engine shaft areas operate under a combination of continuous rotation, lubrication, and elevated temperature.

This makes material selection important. FKM provides good resistance to oils and fuels while maintaining useful high-temperature performance, making it suitable for certain engine shaft sealing applications.

· ITransmissions and Gear Drives: When Operating Temperature Rises

Transmission components generate heat during continuous operation, and the temperature of the lubricant can increase accordingly.

NBR can be suitable for many conventional transmission conditions. However, when temperature becomes a more demanding factor or the lubricant requires greater material resistance, FKM may be considered.

The TC profile combines a primary sealing lip with an additional contamination-exclusion lip, making it suitable for many rotating equipment applications. TC shaft seals are commonly associated with motors, pumps, and transmissions.

· IPumps and Compressors: Continuous Rotary Service

Pumps and compressors may operate for long periods, placing continuous thermal and mechanical demands on the sealing lip.

When temperature, lubricant conditions, or rotational speed make a standard NBR seal less suitable, FKM can provide a stronger material option for demanding oil-based environments.

· Industrial Equipment: Fluid Compatibility Matters

FKM is not selected only because of temperature.

Its resistance to many oils, fuels, and hydrocarbon-based fluids also makes it useful in industrial equipment where the sealing medium is more demanding.

However, FKM is not compatible with every chemical environment. Certain oxygenated solvents, amines, and alkaline media can be unsuitable for standard FKM compounds. Material compatibility therefore needs to be checked against the actual fluid rather than assumed from the FKM designation alone.

When Does FKM Make More Sense?

A practical starting point is:

Conventional oil + moderate temperature → NBR may be suitable.

Higher temperature + oil, fuel, or demanding fluid conditions → FKM may be worth considering.

The final choice should still consider temperature, fluid type, shaft speed, pressure, lubrication, shaft condition, and seal design.

The role of an FKM TC oil seal is therefore not simply to replace NBR. Its value appears when heat, oil exposure, and continuous shaft rotation create a more demanding sealing environment.
