Why Can O-Rings Maintain a Reliable Seal Even in Harsh Operating Conditions?

Number of hits：312025-08-12 14:42:19　

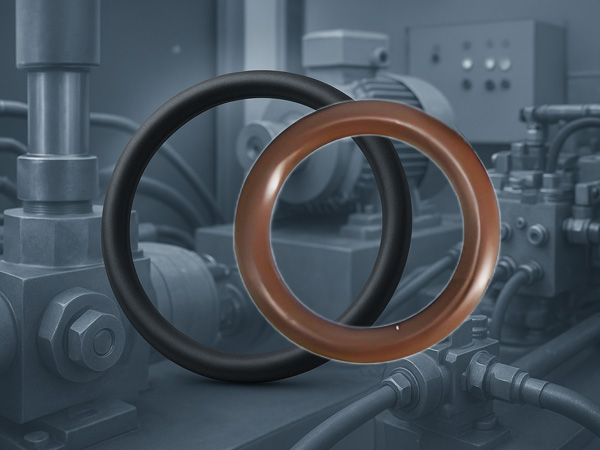

Engineers don’t choose complexity for its own sake; they choose what lasts. The o ring series has endured because a circular cross‑section, placed in the right groove and compressed the right amount, can deliver tight, repeatable sealing across static and dynamic duties. O‑rings are valued for efficiency, affordability, and ease of use, and they are deployed across applications that require high‑pressure sealing—bolted and threaded bosses, pipe joints, and the broader domains of mechanical engineering, hydraulic and pneumatic systems, and the oil and gas industry.

How O‑rings seal—and where the limits live

An O‑ring behaves like a highly viscous fluid under pressure: once squeezed in its gland, it deforms to close leakage paths and, with media pressure, energizes the contact line to maintain a positive seal. This same deformability can lead to extrusion in high‑pressure gaps, which is why designers specify harder compounds or add back‑up rings to support the elastomer.

As for pressure capability, O‑rings in well‑designed glands can serve mid‑to‑high static pressures common to hydraulic duty; some implementations tolerate very high levels, but the ceiling depends on section size, compound hardness, clearance gap, surface finish, and clamp load—so validation against your duty cycle is non‑negotiable.

Static and dynamic service: glands, squeeze, and motion

· Static service spans axial, radial, dovetail, and boss seals; dynamic service includes reciprocating, rotary, and oscillating motion. Each brings its own sizing and tolerance logic. Groove width should exceed depth to provide “volume release” as the ring deforms; calculations must include the clearance gap so you don’t under‑squeeze or extrude the elastomer.

· Assembly matters: avoid twisting, over‑stretch, and nicks; use compatible lubricants to lower friction and wear—bearing in mind that some rubber/grease pairings are incompatible and must be screened in advance. These details are not trivia; they are the difference between a long plateau and a short cliff on your reliability curve.

Materials and hardness: choosing with four variables

Pick compounds by mapping four factors—medium, pressure, temperature, and time:

· Medium: oils, chemicals, cleaners, and steam all drive different compatibility demands.

· Pressure: peak and ramp rate influence hardness and the need for back‑up rings.

· Temperature: low‑temp flexibility versus high‑temp compression set.

· Time: duty cycle and life target tune compound and formulation choices.

Compound families include NBR, EPDM, VMQ, FKM, PU, plus PTFE‑based options. Hardness (Shore A) is a tradeoff: softer materials conform and seal at lower loads but extrude sooner; harder materials resist extrusion but demand tighter gland control and higher preload. The O‑ring’s evolution—from early patents to ubiquitous industrial adoption—rode on this expanding materials palette.

Common touchpoints include:

· Static: lids and covers (axial face sealing), straight‑thread boss seals, auxiliary flange faces.

· Dynamic: hydraulic pistons and rods, low‑speed rotary interfaces, oscillating spindles.

Industries and equipment that benefit directly: pumps, motors, gearboxes, engines and lube circuits; hydraulic and pneumatic manifolds and actuators; construction and agricultural machinery; oil and gas production and transfer; chemical plants and metallurgical lines; water treatment skids; wind turbine yaw/pitch hydraulics; marine/offshore packages; household appliances with critical seal points; rail rolling stock subsystems; commercial vehicles and passenger cars; heavy‑duty trucks; industrial machinery, robotic arms and actuators using hydraulic or pneumatic drives. For applications that require high‑pressure sealing—especially at bolted/threaded bosses and pipe joints—the O‑ring in a boss‑type gland remains a proven path.

NQKSF Services:

· Fast shipment of standard parts—broad stock coverage of O‑rings, oil seals, and related items for urgent needs;

· End‑to‑end customization—from material selection and groove geometry to prototype testing—for non‑standard seals aligned to your media, pressure, and temperature;

· Technical enablement—leveraging long experience to improve sealing performance, reduce maintenance cost, and enhance equipment reliability.

Company highlights: in‑house intelligent manufacturing; broad model coverage with ready stock; shipments to 80+ countries; partnerships with recognized global brands; provincial technology innovation center; recognized as a specialized, innovative, and high‑tech enterprise; an active contributor within a featured industrial cluster.

Selection and assembly: a practical short list

· Start with the medium–temperature–pressure–life matrix; set hardness and decide on back‑up rings for high pressure or large gaps.

· Follow standards for gland geometry and squeeze: 15–25% static, 8–16% dynamic; control clearance gaps and surface finishes.

· Prepare for assembly: chamfer, lubricate with compatible media, avoid twist/over‑stretch; ramp pressure on commissioning and complete a leak check.

· Manage storage and maintenance: protect from heat, UV/ozone, and deformation; rotate stock FIFO; set inspection and replacement intervals appropriate to the compound and duty.

The o ring series is the “quiet fix” behind countless reliable machines. It turns volatile interfaces into predictable builds—by design, not by luck.
