Is the X Ring the Ultimate High Performance Alternative to the O Ring in Dynamic and High Pressure Systems

Number of hits：282025-08-13 11:44:52　

In cylinders and actuators, leaks rarely start loud—they grow from tiny instabilities. The x ring series (often called quad rings) addresses those instabilities at their source: an X‑shaped cross‑section that behaves like a lip seal in both directions. At low pressure, the lips seal by interference with a small contact band and relatively low friction. As pressure rises, elastic deformation increases; tensile, compressive, and bending stresses build, the radial squeeze grows automatically, and the contact length expands until most of the axial profile engages the mating surface—delivering dependable high‑pressure sealing.

Mechanism and double‑acting behavior

· Double‑acting seal: Initial pre‑compression produces radial or axial contact stress that adds to system pressure; the combined sealing force scales with pressure.

· High surface‑tension‑like response: Under pressure, the X profile distributes load more uniformly across contact lines, improving continuity and minimizing leak paths.

· Versus O‑rings: X‑rings are less prone to twisting in sliding service, resist spiral failure and extrusion better, present four contact lines instead of two, and often run with lower friction across a wider range of lubrication conditions.

Where x rings belong: dynamic first, static as needed

· Dynamic duty (core strength): Reciprocating pistons, rods, and plungers; Oscillating, rotary, or helical motion on shafts/arbors, with appropriate lubrication and hardness.

· Static duty (well‑suited): Radial interfaces such as sleeves, end caps, and pipe joints; Axial faces such as flanges and covers.

Materials, pressure, and speed: the three‑way balance

· Compounds: NBR for general and higher‑heat oil service; FKM for elevated temperature and chemicals.

· Pressure strategy: For mid‑to‑high pressure, choose thicker cross‑sections and add back‑ups as needed; gland geometry, initial squeeze, and surface finish govern the true ceiling.

· Speed strategy: In dynamic service, thicker sections better absorb wear and extrusion; manage lubrication film, roughness, and heat to stabilize friction and life.

Sizing and selection notes

· Dynamic use: Prefer the thickest feasible cross‑section to counter wear, improve compression set behavior, and tolerate larger movement gaps.

· Static seals: Smaller sections can work well when squeeze is uniform and groove control is sound.

· Validation: Ramp pressure, include thermal cycling, and inspect for start‑up friction, return leakage, and wear patterns.

Industries and equipment that benefit

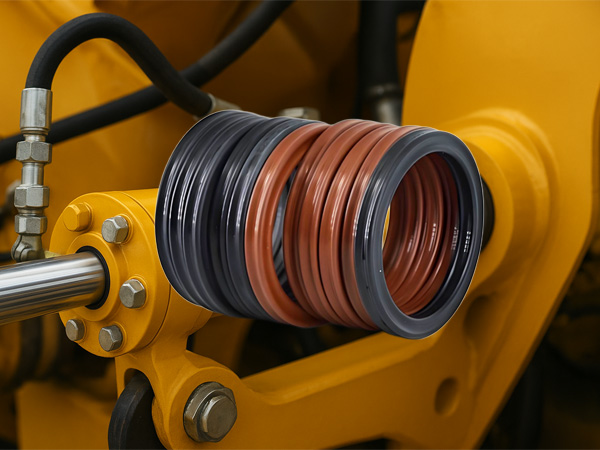

· Hydraulic/pneumatic systems: cylinders, manifolds, actuators

· Construction and agricultural machinery: boom/stearing cylinders, tooling clamps

· Energy and wind power: pitch/yaw hydraulics

· Oil and gas, chemical: valve actuators, metering and test rigs

· Metallurgy and water treatment: high‑load reciprocating seals

· Industrial automation: robotic joints, hydraulic clamping and fixtures

· Automotive and heavy trucks: braking and steering hydraulics

· Marine/offshore, rail, and aerospace manufacturing: critical dynamic interfaces, subject to material and compliance review

· Pumps, motors, gearboxes, engines: auxiliary shaft and low‑speed rotary positions (case‑by‑case validation)

NQKSF services:

· Fast shipment of standard parts: Extensive inventory of O‑rings, oil seals, and related sizes to answer urgent needs;

· End‑to‑end customization: Material selection, geometry design, and production testing for non‑standard seals tailored to your duty;

· Technical enablement: Over 30 years of practice optimizing sealing performance, reducing maintenance costs, and improving reliability.

Company highlights:

· In‑house manufacturing;

· Deep experience in sealing;

· Broad model coverage with ready stock;

· Shipments to 80+ countries;

· Partnerships with well‑known global brands;

· Provincial technology innovation center;

· Recognized as a specialized and innovative, and a high‑tech enterprise;

· Strong performer within a featured industrial cluster.

X-Rings are a high-performance alternative to standard O-Rings. Their four-lobed design provides a better seal, less wear, and longer service life, making them particularly suitable for dynamic or high-pressure systems. For engineers seeking higher sealing performance without a major redesign, star-shaped seals are a good choice.
