　　Anyone who has worked with hydraulic pumps, pipeline fittings, or high-pressure threaded joints knows that leaks don’t just waste fluid—they eat into productivity. Over the years, one particular design has quietly earned a reputation among engineers for being simple to fit yet remarkably durable: the bonded seal.

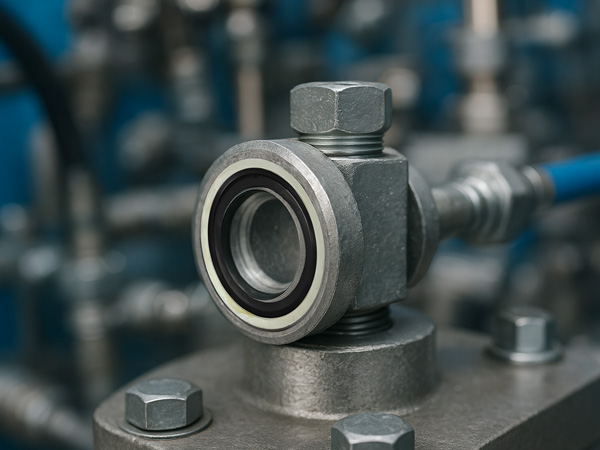

　　Rather than relying solely on rubber or a precision-machined groove, a bonded seal pairs a sturdy metal ring with a thin layer of elastomer bonded to its inner edge. The steel (carbon or stainless, depending on the job) keeps the washer rigid and prevents distortion under bolt load. The rubber—often NBR for oils, sometimes FKM for heat and chemicals—does the sealing work when compressed. The result is a compact, self-contained unit that seats neatly under a bolt head or fitting, ready to hold back pressures that can exceed 40 MPa, sometimes much more.

　　Some designs include a small locating lip so the washer sits perfectly centered on the bolt during assembly. Others omit it to allow more flexibility when sealing irregular surfaces. In either case, installation is straightforward—no special groove machining, no fiddly positioning. This ease of use is one reason they’ve become a standard choice in mechanical engineering, the oil and gas industry, and hydraulic equipment worldwide.

　　From our own work at NQKSF, supplying bonded seals to over 80 countries, we’ve seen them in everything from compact hydraulic control blocks to large marine propulsion systems. The applications share a common thread: once installed, the seal needs to work without constant attention. That reliability comes from choosing the right combination of metal and elastomer. Zinc-plated steel with NBR suits most hydraulic oil circuits; stainless with FKM is ideal for high-temperature or chemically aggressive fluids.

　　Because the bonded seal’s design contains the gasket material, the mating parts don’t have to be shaped to hold the seal in place. For equipment builders, that can mean fewer machining steps and faster assembly lines. For maintenance crews, it’s one less variable to worry about when replacing a part in the field.

　　At NQKSF, our approach goes beyond selling a washer. We keep thousands of standard sizes in stock for immediate dispatch and work closely with clients to develop non-standard designs when a job demands it. Material selection, design tweaks, prototype testing—these steps are part of our daily routine, shaped by more than three decades of sealing experience.

　　The bonded seal might be small, but in high-pressure systems, it plays a big role. Get the material and dimensions right, fit it properly, and it will do its job quietly for years. In a world where downtime is costly, that kind of silent performance is worth its weight in steel.
