How can I Select the Right TCN Pressure‑Resistant Oil Seal for my Application？

Number of hits：352025-08-08 10:34:00　

When rotating systems face pressure, pulsation, heat and misalignment at once, leakage isn’t a defect—it’s a symptom. The TCN pressure‑resistant oil seal series is built precisely for that edge of reality. By reinforcing the cage and stabilizing the sealing lip under load, it resists lip roll‑over and pressure‑induced deformation, keeping lubrication in and contaminants out across pumps, hydraulic motors, gearboxes and engines where back‑pressure is not negotiable.

Architecture and materials

· Dual‑lip layout with dust exclusion to slow media aging and abrasive ingress.

· Auxiliary cage to share radial force and keep the contact band stable under pressure.

· Short coil spring for consistent contact stress and self‑compensation as wear progresses.

· Elastomer‑coated OD for dependable static sealing, even in light‑metal housings with high thermal expansion.

· Material options: NBR for mainstream oils and -40–125°C regimes; FKM for higher temperature and chemically challenging media; stainless/carbon steel for cage and garter spring.

Performance envelope

Designed for pressurized rotation, TCN seals are commonly applied up to about 0.3 MPa in continuous service; with low speed, good lubrication and heat dissipation, certain sizes can stretch the window after engineering validation. Temperature follows elastomer choice (NBR vs FKM). Rotational capability depends on viscosity, shaft size and thermal path; a stable oil film and appropriate shaft finish help extend life. The goal isn’t chasing a “printed maximum,” but keeping your duty cycle inside the comfort zone.

Selection and installation essentials

· Media and temperature define elastomer priority.

· Pressure profile and pulsation amplitude determine lip stability; consider back‑to‑back layouts or relief features when needed.

· Shaft/housing geometry, runout and press‑fit govern the initial state; rubber‑coated OD tolerates rougher bores.

· Pre‑lubrication prevents dry starts; cooling paths matter in continuous load.

· Use proper tools, protect the lip and spring, control insertion depth.

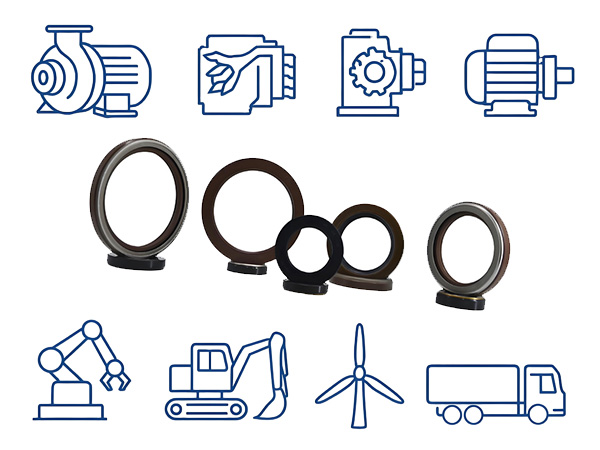

TCN seal application industry

· Pumps and water treatment trains.

· Hydraulic systems and motors under pulsating load.

· Gearboxes and speed reducers (input/output ends).

· Engines and power units with combined heat and pressure.

· Industrial machinery and robots (joint reducers, spindles).

· Construction and agricultural machinery.

· Metallurgy and chemical equipment under controlled pressure.

· Wind power and energy geartrains.

· Automotive and heavy‑duty trucks (transmissions, axles).

· Marine propulsion and deck machinery.

NQKSF services provided

· Standard items, in stock, shipped fast: O‑rings, oil seals, and more—thousands of sizes to meet urgent needs.

· End‑to‑end customization: from material selection and design to production and testing, tailored to your duty cycle.

· Technical enablement: 30+ years of experience to lift sealing performance, lower maintenance cost and raise uptime.

Why NQKSF

· In‑house manufacturing with a closed loop from R&D to inspection.

· Broad portfolio and process depth that translate into practical solutions.

· Wide model coverage and ready stock to cut downtime.

· Customer footprint in 80+ countries for cross‑industry validation.

· Provincial innovation center, specialized‑and‑innovative recognition, and high‑tech enterprise credentials.

· Part of a strong industrial cluster with reliable supply.

· Trusted by well‑known global brands through long‑term programs.

Reliable sealing is a method, not a number. The TCN pressure‑resistant oil seal series embeds that method into every detail. Bring NQKSF your operating conditions—get back verifiable, long‑term reliability.
