When an oil seal starts leaking shortly after installation, it is easy to suspect a problem with the seal itself. However, leakage does not always mean the seal is defective. Installation errors, shaft condition, incorrect material selection, and unsuitable operating conditions can all cause premature leakage.

Understanding the actual cause is important because replacing the seal without correcting the underlying problem may only lead to another failure.

Installation Direction Can Affect Sealing Performance

Many rotary shaft seals have a specific sealing side. The primary sealing lip is designed to retain lubricant or oil on one side of the seal, while a secondary dust lip, when present, helps prevent contaminants from entering.

If the seal is installed in the wrong direction, the sealing lip may not perform its intended function. This is particularly important with double-lip oil seals, where the oil-sealing lip and dust lip have different roles.

Before installation, the seal structure should be checked against the equipment design rather than relying only on its appearance.

A Damaged Lip Can Cause Leakage From the Start

The sealing lip is a precision working surface. Scratches, cuts, deformation, or damage to the lip during installation can create a leakage path.

Forcing the seal over a sharp shaft edge, keyway, spline, or damaged surface is a common cause. The shaft should have a suitable lead-in chamfer, and sharp edges should not come into direct contact with the sealing lip.

The lip should also be protected from dirt and unnecessary friction during installation.

Shaft Wear Can Be More Important Than Seal Condition

Even a correctly selected oil seal may leak when the shaft surface is worn.

Continuous contact between the sealing lip and rotating shaft can gradually produce a wear track. If a groove develops in the shaft at the lip contact area, installing a new seal in exactly the same position may not solve the problem.

Shaft roughness, excessive surface damage, corrosion, runout, or other surface conditions can also affect the stability of the sealing interface. The shaft should therefore be inspected whenever an oil seal is replaced repeatedly.

Material Selection Must Match the Operating Conditions

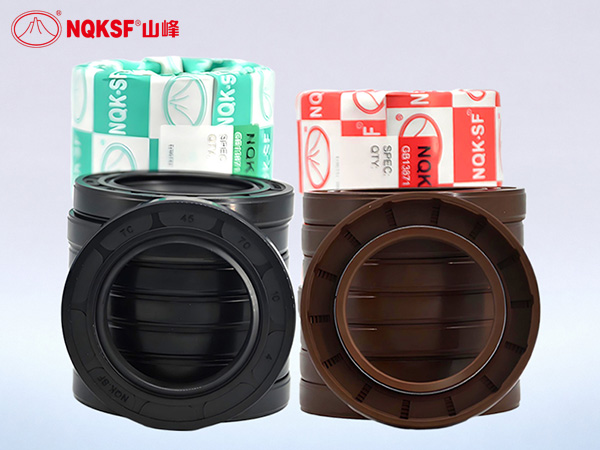

Oil seals are available in different elastomer and polymer materials because operating environments vary considerably.

NBR is commonly used with mineral oils and in many general industrial applications. FKM generally provides better resistance to elevated temperatures and a wider range of fluids than standard NBR. PTFE is selected in applications where low friction and strong chemical resistance are important, but its suitability also depends on shaft condition, pressure, speed, temperature, and the specific PTFE compound.

Choosing a material only by price or appearance can result in premature failure.

Find the Cause Before Replacing the Seal

When an oil seal leaks repeatedly, the correct approach is to inspect the complete sealing system rather than replacing the seal immediately. Check the installation direction, sealing lip condition, shaft surface, housing fit, lubrication, temperature, rotational speed, pressure, and compatibility between the sealing material and operating medium.

An oil seal works as part of a system. Reliable sealing depends not only on the seal itself, but also on whether the surrounding mechanical conditions are suitable for its design.
