Key Points for Industrial Sealing Ring Selection and Supplier Evaluation?

Number of hits：452026-08-31 16:51:37　

For industrial sealing applications, the first step is to match the seal to the actual operating conditions and then confirm the material, dimensions, and design. When evaluating suppliers, buyers should look beyond price and examine material control, dimensional consistency, quality inspection, technical documentation, and long-term supply capability.

For hydraulic systems, pneumatic equipment, pumps, valves, machinery, and industrial automation, a sealing ring may be a small component, but its performance can directly affect pressure retention and fluid control.

Start With the Working Conditions

One common mistake in industrial seal purchasing is ordering a replacement based only on the previous part number or material designation without checking whether the operating conditions have changed.

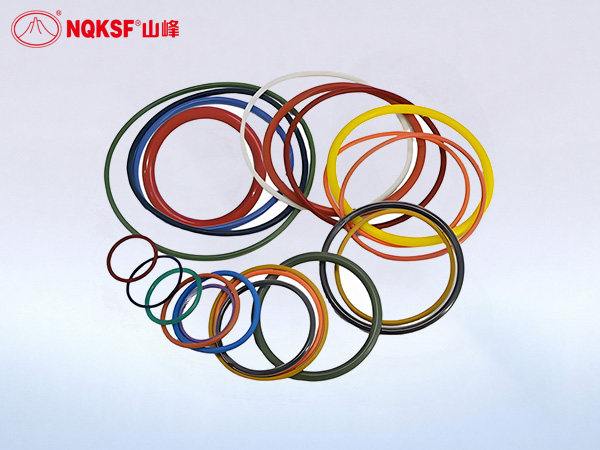

An O-ring with the same dimensions can behave very differently when made from a different elastomer. NBR is commonly considered for many oil, fuel, and general industrial applications. EPDM is more suitable for many water, steam, and weather-related environments, while FKM is often considered when higher temperature or broader oil and chemical resistance is required. The actual fluid, additives, temperature, and exposure conditions all need to be considered together.

Movement is another important distinction. A static seal mainly depends on compression, groove geometry, and long-term material stability. A dynamic seal introduces additional factors such as friction, lubrication, movement speed, surface condition, and wear. The same seal specification therefore cannot automatically be treated as suitable for every application.

Do Not Treat the Material Name as the Complete Specification

Industrial buyers sometimes specify a seal simply as “NBR O-ring” or “FKM O-ring.” That information is useful, but it is not enough for a demanding application.

The same elastomer family can be available in different hardness levels and compound formulations. Dimensions, tolerances, hardness, compression, and groove design all influence the final sealing condition.

A more useful purchasing specification should therefore consider the size, material, hardness, applicable standard, and working medium together.

For higher-pressure hydraulic applications, extrusion clearance and material hardness may require additional attention. For dynamic sealing, the movement pattern and lubrication conditions also become part of the selection process.

A Supplier Should Be Evaluated on Consistency

Once the seal specification is clear, supplier evaluation should move beyond the quotation.

The first question is whether the supplier can clearly explain material sourcing, compound control, and batch management. If material properties vary significantly between batches, consistent dimensions alone may not guarantee consistent sealing performance.

Production control is another point worth checking. For regular industrial purchasing, the goal is not simply to receive one acceptable batch. The supplier should be capable of maintaining similar dimensional and quality performance across repeated orders.

Technical documentation also matters. Depending on the application, buyers may need material information, inspection records, standards, or specific compliance documents. This becomes more important in industries with defined material or regulatory requirements. A general statement that a supplier “has certifications” is not the same as confirming that the exact product and compound meet the required documentation.

Price Should Not Be the Only Comparison

For industrial seals, purchase price represents only part of the overall cost.

An incorrect material, unstable dimensions, or inconsistent batches can lead to leakage, equipment downtime, repeated replacement, and additional maintenance work. The more useful comparison is therefore product cost + operating risk + supply consistency, rather than unit price alone.

A practical purchasing process can start by confirming the application and specification, then asking suppliers for matching material and product information. Samples or a small trial order can be used to verify dimensions, assembly, and application performance before moving to regular purchasing.

In simple terms, seal selection answers one question: “Is this seal suitable for the equipment?” Supplier evaluation answers another: “Can this supplier provide the same suitable product consistently over time?”

When both questions have been answered, industrial seal purchasing moves beyond finding a product and becomes a more reliable supply decision.
