What Makes a Good Oil Seal?

Number of hits：32026-08-24 11:52:09　

A good oil seal is not defined simply by its dimensions or appearance. Its real performance depends on whether the seal can work properly with the shaft, lubricant, and operating environment while maintaining a stable sealing condition during service. For this reason, evaluating an oil seal requires more than checking the product itself.

· The Seal Needs the Right Design and Material

The main working area of a rotary oil seal is the contact between the sealing lip and the rotating shaft. A suitable lip design should provide enough contact to control lubricant leakage without creating unnecessary friction and heat. In spring-loaded rotary seals, the garter spring helps maintain radial contact between the primary lip and the shaft.

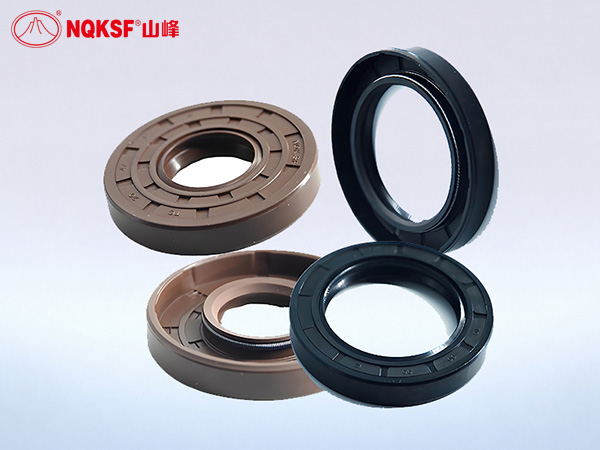

Material selection is equally important. NBR is commonly used in many conventional oil-based applications, while FKM may be considered when higher temperature or fluid resistance is required. If the elastomer does not match the actual medium or temperature, the seal may gradually lose its intended properties even when its dimensions are correct.

· The Shaft Is Part of the Sealing System

An oil seal does not work independently. It forms a sealing interface together with the rotating shaft. Scratches, wear grooves, unsuitable surface finish, or excessive shaft movement can change the way the sealing lip contacts the shaft.

This is why replacing a leaking oil seal does not always solve the problem. If the shaft has already developed a wear groove, a new seal may still struggle to maintain the intended contact.

Operating conditions matter as well. Rotational speed, temperature, lubrication, and shaft movement can all influence the sealing lip. Higher speed may increase friction and heat, while insufficient lubrication can accelerate lip wear. The actual performance of an oil seal is therefore influenced by the complete sealing system rather than the seal alone.

· Installation Is Part of the Final Result

A seal that meets its manufacturing requirements still needs to be installed correctly. A damaged lip, displaced spring, tilted seal, or sharp edge on the shaft can create leakage during operation.

This means a good oil seal should not be judged only by how it looks when it leaves the factory. Its design, material, shaft condition, lubrication, and installation method need to be compatible with one another.

For users selecting an oil seal, the more useful question is not simply which seal is “better,” but which seal is appropriate for the actual machine. When dimensions, material, design, and operating conditions are properly matched, the seal has the right foundation to perform its intended sealing function.
