Why Is My Equipment Still Leaking Oil If the Oil Seal Looks Fine?

Number of hits：212026-07-22 17:44:24　

Finding oil around a machine often leads to one immediate conclusion—the oil seal has failed. However, this is not always the case. In many maintenance situations, the oil seal appears to be in good condition, yet oil leakage continues even after it has been replaced.

The reason is simple: an oil seal is only one part of the entire sealing system. Leakage can result from several mechanical or operating factors, even when the seal itself shows no obvious damage.

An Oil Seal Works Together with Other Components

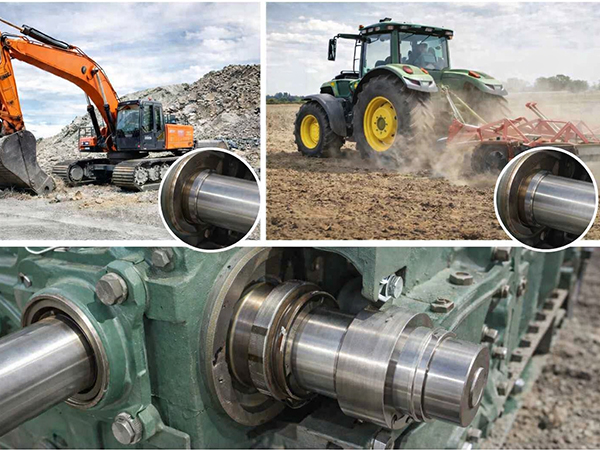

An oil seal is designed to retain lubricant and prevent contaminants from entering rotating equipment. To perform properly, it must work together with the shaft, housing, bearing arrangement, lubrication system, and installation structure.

If any of these components fall outside their normal operating condition, sealing performance may decline even though the oil seal remains intact.

For this reason, experienced maintenance engineers usually inspect the complete sealing system instead of replacing the seal alone.

Shaft Wear Can Create a Leakage Path

One of the most common causes of unexpected oil leakage is shaft wear.

After long periods of operation, the shaft surface may develop grooves where the sealing lip contacts the metal. Although the oil seal still has sufficient elasticity, it can no longer maintain uniform contact with the worn surface, allowing lubricant to escape.

In this situation, replacing only the oil seal often provides only temporary improvement. Repairing the shaft or installing a repair sleeve may also be necessary.

Installation Quality Directly Influences Sealing Performance

Even a high-quality oil seal may fail if it is installed incorrectly.

Improper installation can damage the sealing lip, distort the metal case, or dislodge the garter spring. Lack of lubrication during installation may also cause excessive friction during initial operation, shortening seal life.

Following proper installation procedures is essential for achieving reliable sealing performance.

The Operating Environment May Exceed the Seal's Design Limits

Every oil seal is designed for a specific operating range.

High temperatures, excessive shaft speed, abrasive contamination, aggressive chemicals, or abnormal pressure conditions can all reduce sealing effectiveness. Selecting an unsuitable material may result in hardening, wear, or deformation even when the seal is manufactured correctly.

Choosing the appropriate sealing material according to the application is therefore just as important as selecting the correct size.

Internal Pressure Can Force Oil Past the Seal

Oil seals are not intended to function as pressure seals.

If the equipment develops excessive internal pressure because of blocked breathers, poor ventilation, or lubrication system issues, lubricant may be forced past the sealing lip without any damage to the oil seal itself.

Checking ventilation and pressure balance should always be part of the troubleshooting process when investigating oil leakage.

Choosing the Right Seal Supports Long-Term Reliability

Different operating conditions require different sealing designs.

For example, TC oil seals are commonly used for general rotary applications, while TG and TG4 oil seals provide enhanced protection in environments with higher levels of dust or contamination.

Shanfeng Special Rubber Products Co., Ltd., the manufacturer behind the NQKSF brand, develops and manufactures a wide range of industrial sealing products, including oil seals, O-rings, hydraulic seals, pneumatic seals, and PTFE sealing solutions. By matching sealing designs with actual operating conditions, industrial users can improve equipment reliability and reduce unnecessary maintenance.

FAQ

Q: Should I replace an oil seal if it looks undamaged?

A: Not necessarily. Before replacing the seal, inspect the shaft surface, installation condition, lubrication system, and equipment pressure. Oil leakage may be caused by factors outside the seal itself.

Q: How can recurring oil leakage be prevented?

A: A complete inspection of the sealing system is recommended. Proper material selection, correct installation, shaft condition, and normal operating conditions all contribute to long-term sealing performance.
