What are The Installation Steps and Sealing Scenarios for a TC Oil Seal?

Number of hits：352026-07-20 17:25:51　

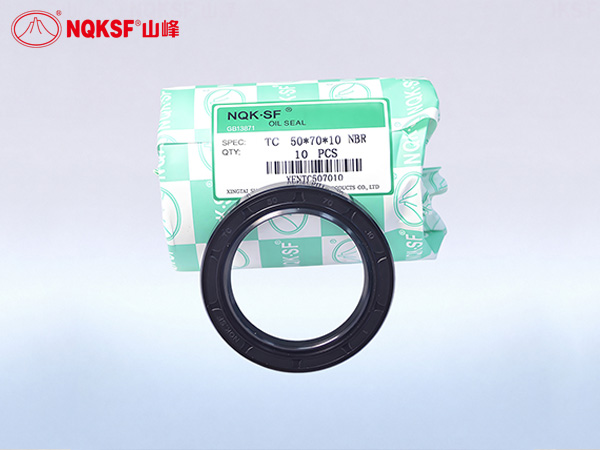

From an engineering standpoint, a TC oil seal is designed for rotating shafts that require both dust protection and lubricant retention. Its dual‑lip structure makes installation sensitive to alignment and surface condition.

Why TC Oil Seals Are Installed This Way

A TC oil seal has two functional lips: the primary lip for oil retention and the secondary lip for dust exclusion. Because both lips rely on controlled interference with the shaft, installation must avoid distortion and uneven pressure.

Installation Guidelines

Prepare the Shaft Surface

The shaft should have a stable roughness and no burrs. This prevents premature lip wear and ensures the oil film forms correctly.

Lubricate the Primary Lip

A thin oil layer reduces friction during the first rotation and protects the lip edge from thermal shock.

Press the Seal Evenly Into the Housing

TC seals require uniform axial force. Uneven pressing may tilt the metal case, affecting lip contact.

Verify Seating Depth

The seal should sit flush with the housing shoulder to maintain concentricity.

Suitable Sealing Scenarios

Automotive engines and transmissions

The dual‑lip design helps manage both lubricant retention and external contamination.

Agricultural and construction machinery

Dust‑rich environments benefit from the secondary lip’s exclusion capability.

Industrial pumps and gearboxes

TC seals maintain stable sealing under moderate pressure and continuous rotation.

TC oil seals are installed with controlled alignment and lubrication because their dual‑lip structure depends on precise contact. They are suitable for rotating equipment exposed to both lubricant and external contaminants.
