What Are the Common Types of Shaft Oil Seals?

Number of hits：12026-03-19 11:07:48　

In the sealing systems of rotating equipment, shaft oil seals play a crucial role in maintaining lubrication, blocking contamination, and ensuring stable shaft operation. Although small in size, their performance directly affects equipment reliability, maintenance costs, and downtime risk. Because different machines vary significantly in speed, temperature, medium, pressure, shaft surface condition, and installation requirements, oil seals have developed multiple structures and material types to meet diverse operating conditions. As a domestic manufacturer deeply involved in the sealing industry, Shanfeng Special Rubber Products Co., Ltd.(NQKSF) has long focused on providing highly compatible oil seal solutions for construction machinery, industrial equipment, agricultural machinery, and other fields, accumulating extensive application experience across various working conditions.

The fundamental reason shaft oil seals come in many types

The core functions of an oil seal are to retain lubricant, block dust and contaminants, and allow the shaft to rotate smoothly under sealed conditions. However, operating conditions differ widely across equipment:

· Speeds may range from a few dozen rpm to tens of thousands

· Temperatures may vary from ambient to above 200°C

· The medium may be standard lubricating oil or contain additives, fuel, or corrosive substances

· Shaft roughness, hardness, and runout vary significantly

Therefore, oil seals must be designed with different structures, materials, and case forms to maintain stable sealing performance under different conditions. Shanfeng(NQKSF) continuously invests in material systems, structural design, and application matching, enabling its products to cover both standard and demanding environments.

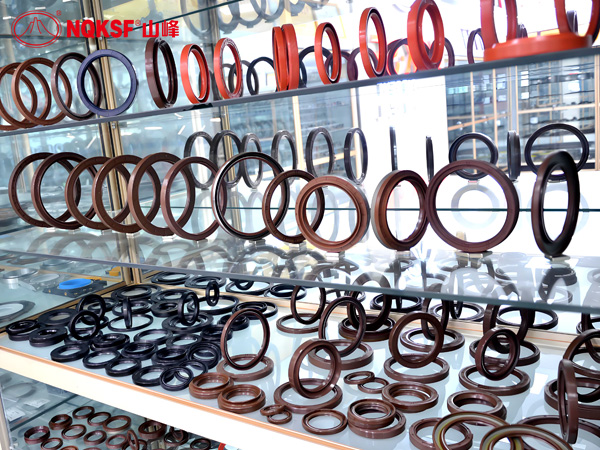

Common types of shaft oil seals and their characteristics

· Single‑lip oil seal A single‑lip seal has only one main sealing lip, primarily used to retain lubricant. It features low friction and low heat generation, making it suitable for high‑speed, clean environments with good lubrication. Shanfeng(NQKSF) is single‑lip seals perform reliably in high‑speed applications such as motors and pumps.

· Double‑lip oil seal A double‑lip seal adds a dust lip outside the main lip, effectively blocking dust, mud, and external particles. It is ideal for construction machinery, agricultural machinery, and outdoor equipment. Shanfeng(NQKSF) has optimized its double‑lip designs to maintain strong sealing performance even in muddy or dusty environments.

· Skeleton oil seal A skeleton oil seal contains an internal metal case that maintains structural stability. In high‑speed or temperature‑fluctuating conditions, the metal case prevents deformation and ensures stable lip‑to‑shaft contact. Shanfeng(NQKSF) is skeleton seals are widely used in industrial and construction machinery, offering strong wear resistance and dimensional stability.

· Non‑skeleton oil seal A non‑skeleton seal is made entirely of rubber, offering greater flexibility. It is suitable for light‑load, low‑speed, or limited‑space applications. The rubber body conforms well to the housing, reducing micro‑leakage.

· Rubber‑covered oil seal The outer case is fully covered with rubber, compensating for rough or slightly corroded housing surfaces and improving sealing performance. Shanfeng(NQKSF) is rubber‑covered seals significantly enhance sealing in older equipment or housings with lower precision.

· Metal‑cased oil seal This type uses a metal outer case, providing higher rigidity and positioning accuracy. It is commonly used in industrial equipment and precision machinery where installation conditions are stable and dimensional accuracy is critical.

· Special‑condition oil seals (high‑temperature, chemical‑resistant, high‑speed) For extreme conditions such as high temperature, high speed, or corrosive media, materials like FKM, HNBR, ACM, and PTFE offer superior heat resistance, chemical resistance, and wear resistance. Shanfeng(NQKSF) has mature formulations in these materials and can provide customized designs based on customer requirements.

Why these classifications matter to engineers

Oil seal selection directly affects equipment reliability and maintenance cost:

· Choosing the wrong seal leads to leakage, shaft wear, excessive heat, and increased downtime

· Choosing the right seal extends bearing life, reduces maintenance frequency, and improves operational stability

Different oil seals vary in friction characteristics, temperature resistance, medium compatibility, and structural stability, all of which influence equipment lifespan. Through long‑term service in construction machinery and industrial equipment, Shanfeng(NQKSF) continuously refines its designs based on real‑world conditions, ensuring stable performance even in harsh environments.

The core of oil seal selection is not “anything that fits,” but ensuring that the structure and material can operate reliably under actual working conditions. Engineers must consider speed, temperature, medium, pressure, dust exposure, shaft roughness and hardness, runout, and installation conditions. Shanfeng(NQKSF) provides technical support to help customers quickly match suitable oil seal solutions and reduce trial‑and‑error costs.

The diversity of shaft oil seal types exists because equipment operating conditions vary widely. For users, the key is not choosing the most expensive or most famous brand, but selecting a manufacturer whose products remain stable under their specific conditions, with strong material compatibility and consistent quality.

With robust material systems, mature manufacturing processes, and extensive industry experience, Shanfeng(NQKSF) provides high‑reliability oil seal solutions for construction machinery, industrial equipment, agricultural machinery, and more—helping customers improve equipment stability, reduce maintenance costs, and achieve higher operational efficiency.
