How to Select a Skeleton Oil Seal According to Equipment Parameters?

Number of hits：12026-03-16 10:59:49　

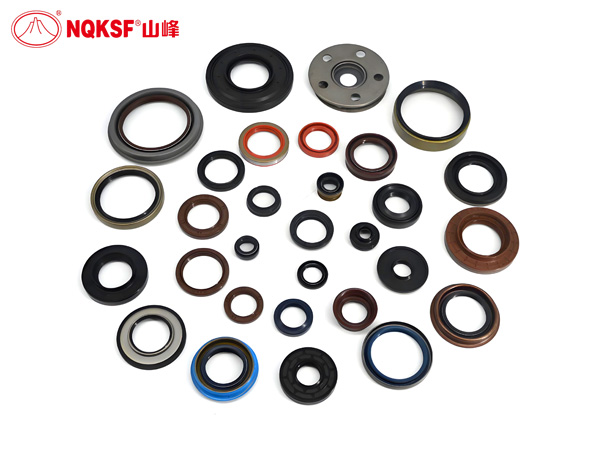

In rotating equipment, the oil seal plays a critical role in maintaining lubrication, preventing contamination, and ensuring stable operation. Although its structure appears simple, sealing performance depends on far more than dimensional fit. Real operating conditions—temperature, speed, medium, shaft accuracy, and installation quality—are the true factors that determine whether an oil seal can perform reliably over long periods. Only by fully understanding these conditions can the correct structure and material be selected to keep the sealing system stable throughout equipment operation.

Influence of equipment parameters on oil seal selection

A skeleton oil seal relies on lip contact pressure, oil film formation, and the condition of the shaft surface. These factors are closely tied to equipment parameters. Basic information such as shaft diameter, housing bore, installation width, speed, temperature, medium type, and sealing direction must be confirmed first, as these determine whether the seal can be installed correctly and achieve basic sealing performance. Beyond this, shaft runout, surface roughness, hardness, cavity pressure, external contamination, and installation space are equally important. These factors often determine the seal’s service life and stability and are common causes of leakage issues.

Selecting structure and material based on operating conditions

Once equipment parameters are understood, the oil seal’s structure and material must be chosen according to the operating environment. High‑speed operation generates more frictional heat and makes oil film stability more difficult, so material heat resistance and lip friction characteristics become critical. Medium‑ and low‑speed equipment place more emphasis on oil resistance and dimensional stability. The composition of the medium is also crucial; additives, detergents, or fuel components may affect rubber stability. If the material is incompatible, swelling, hardening, or cracking may occur, reducing sealing performance. In dusty, muddy, or particle‑rich environments, dust‑lip designs or additional external protection are needed to maintain a stable oil film at the main lip. If cavity pressure is present, it must be evaluated whether a standard oil seal is suitable, and whether a return‑oil structure or a pressure‑resistant design is required.

Impact of shaft condition on sealing performance

In many applications, seal failure is not caused by the oil seal itself but by the shaft condition. Excessive surface roughness accelerates lip wear, while overly smooth surfaces may destabilize the oil film. Shafts with insufficient hardness may develop grooves from lip contact. Shaft runout or eccentricity causes cyclic loading on the lip, disrupting the oil film and reducing sealing performance. For long‑term operation or critical equipment, wear sleeves or surface treatments may be necessary to improve shaft durability and stability.

Influence of installation conditions on sealing effectiveness

Skeleton oil seals are sensitive to installation quality. Lack of chamfers, sharp shaft edges, keyways, or threads can damage the lip during installation. Scratches on the outer diameter during press‑fit may also cause leakage. Therefore, installation space and assembly method must be considered during selection to ensure the seal enters its working position correctly. When crossing keyways or threads, installation sleeves are essential to protect the lip.

A clear selection path for practical applications

Oil seal selection can be summarized into a systematic decision process:

Determine material based on temperature and medium.

Select lip design based on speed and friction conditions.

Evaluate whether reinforced structures are needed based on shaft accuracy and wear.

Choose dust‑protection features based on environmental contamination.

Confirm whether a standard oil seal is suitable based on pressure and return‑oil conditions.

Select outer dimensions and case design based on installation space.

Through systematic analysis of these factors, the oil seal can maintain stable performance under actual operating conditions.
