How Much Interference Should an Oil Seal Lip Have on the Shaft?

Number of hits：532026-02-07 11:30:07　

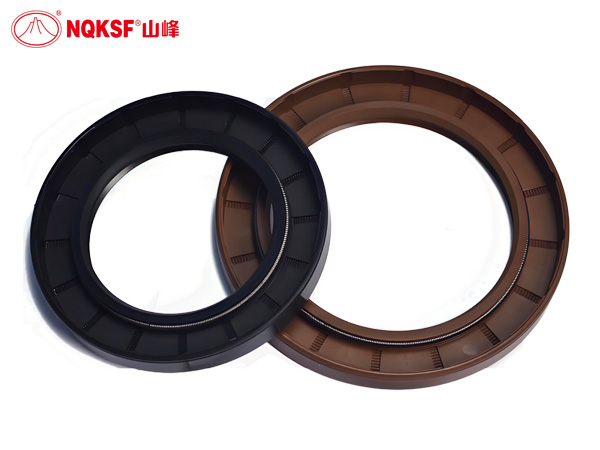

Many people hear the term interference fit and assume it is a complicated parameter. In reality, it is simply the dimensional difference between the inner diameter of the oil seal lip and the shaft diameter. In other words, it describes how tightly the lip presses against the shaft, and this pressing force is the result of the interference fit.

If the interference is too small, the seal will not be tight enough. If it is too large, the lip will wear out prematurely. Finding the proper interference fit is essential for ensuring sealing performance and extending the service life of the oil seal.

Common interference fit ranges

Although different manufacturers may have slightly different designs, engineers generally select the interference fit based on operating conditions. Here are some commonly used reference values:

Standard applications such as NBR and FKM: 0.20 to 0.50 millimeters

High speed equipment with noticeable temperature rise: 0.15 to 0.35 millimeters

Low speed, heavy load, or rough shaft surfaces: 0.40 to 0.60 millimeters

These values are not arbitrary. They are based on material elasticity, shaft roughness, rotational speed, temperature, and extensive testing.

Why interference fit varies

There is no single fixed standard. The interference fit must be adjusted according to the actual working conditions. For example:

High speed motors: friction generates heat, so the interference should be reduced to avoid overheating.

Construction machinery: shafts may be rough and heavily loaded, so a larger interference is needed for stable sealing.

Automotive engines: good lubrication and high shaft precision allow for a slightly smaller interference to reduce friction losses.

This is why you may see ranges such as 0.3 to 0.6 millimeters, 0.2 to 0.5 millimeters, or 0.15 to 0.35 millimeters. Each range corresponds to a different application scenario.

How to determine the proper interference fit

When selecting the interference fit, consider the following factors:

Rotational speed

High speed requires a smaller interference. Low speed can tolerate a larger one.

Shaft surface roughness

If Ra is less than or equal to 0.4, a smaller interference is acceptable.

If Ra is greater than or equal to 0.8, a larger interference is needed to ensure proper contact.

Material type

NBR: good elasticity and wide applicability.

FKM: hardness increases at high temperatures, so interference should be slightly smaller.

PTFE: does not rely on traditional interference fit and is used only in special applications.

Temperature

Higher temperatures increase material hardness, so the interference must be adjusted more precisely.

There is no absolute standard value for oil seal interference fit, but the commonly accepted reference range is 0.20 to 0.50 millimeters. The most important thing is to adjust it according to the actual operating conditions, material type, and shaft surface quality.

Interference fit is not a mysterious fixed number. It is a flexible parameter that must be adapted to different environments. I hope this explanation helps you better understand and apply interference fit to ensure reliable sealing and long term stability.
