Which Equipment is Best Suited for Using X Rings?

Number of hits：72025-12-06 15:00:53　

X rings are an effective sealing solution commonly used in hydraulic and pneumatic systems. Unlike traditional O-rings or oil seals, X rings offer unique structural advantages, making them ideal for specific equipment and applications. So, which types of equipment are best suited for X rings? In this article, we will explore the ideal use cases for X rings and provide expert recommendations on how to choose the right sealing solution for your needs.

1. What is a X Ring?

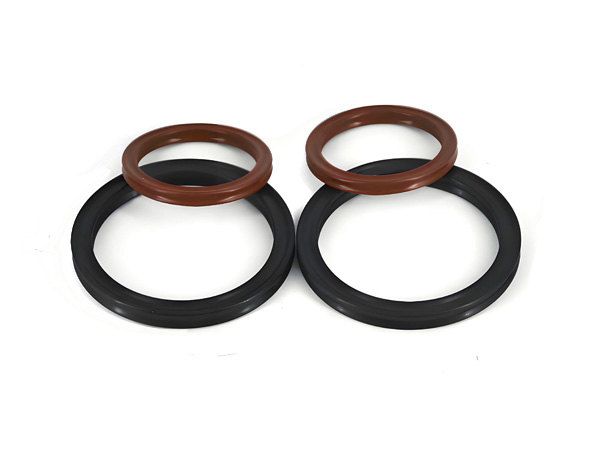

X ring is a four-lip sealing element with an X-shaped cross-section, features a star-like shape that allows it to provide an effective seal under both axial and radial pressure. The structure of a x ring consists of multiple contact points, enabling it to adapt to varying pressure conditions, ensuring reliable sealing performance in challenging environments.

Key Characteristics of X Rings:

High Pressure Resistance: X rings are ideal for high-pressure applications, especially in hydraulic systems.

Excellent Wear Resistance: The design of the x ring ensures durability and extended service life, even in high-friction environments.

Versatile Sealing: X rings provide reliable sealing for both static and dynamic applications, making them suitable for a wide range of industrial uses.

Leak Resistance: Thanks to their unique design, X rings effectively prevent fluid and gas leakage, ensuring the smooth operation of equipment.

2. Equipment Best Suited for X rings

1. Hydraulic System Equipment

One of the primary applications of X rings is in hydraulic systems, where the seals need to withstand high pressure and maintain sealing integrity in demanding conditions. Hydraulic cylinders, pumps, and valves often operate under extreme pressure, making it essential to use seals that can prevent fluid leakage while ensuring the system's efficiency. X rings, with their ability to withstand high-pressure environments, make them a reliable choice for hydraulic systems.

Common Applications:

Hydraulic Cylinders: X rings are ideal for use in hydraulic cylinders, where they provide effective sealing between the piston and cylinder body, preventing fluid leakage.

Hydraulic Pumps: In pumps that operate under high pressure, X rings ensure that fluids are contained, preventing leakage and maintaining operational stability.

2. High-Speed Rotating Equipment

X rings are not only used in static sealing applications but also in dynamic sealing systems, particularly in high-speed rotating equipment. These seals are essential for machinery that experiences continuous motion, such as shafts and bearings. Due to their robust design, X rings are capable of withstanding the friction generated in rotating parts while providing a long-lasting, effective seal.

Common Applications:

Bearings Sealing: X rings are used to seal rotating bearings, ensuring that lubricating fluids remain contained while minimizing friction and wear.

Motors and Pumps: In rotating parts of motors and pumps, X rings prevent leakage and offer long-lasting performance.

3. Heavy Machinery and Mining Equipment

In heavy machinery and mining equipment, the operating conditions are typically harsh, with exposure to high pressure, extreme temperatures, and abrasive environments. X rings, with their durability and high wear resistance, are well-suited for these conditions. Whether in excavators, bulldozers, or mining drills, X rings ensure that these machines continue to function at peak performance, even in challenging conditions.

Common Applications:

Construction Machinery: In heavy machinery like excavators and bulldozers, X rings are used in hydraulic systems to provide reliable sealing under high pressure.

Mining Equipment: Mining equipment often operates under harsh conditions, and X rings help prevent fluid leakage, keeping the machinery running smoothly in high-pressure environments.

4. Aerospace and Automotive Applications

X rings are also used in aerospace and automotive applications, where reliability and performance are crucial. In these industries, seals must perform effectively under extreme conditions, including high temperatures and fluctuating pressures. The versatility and durability of X rings make them an ideal choice for these applications.

Common Applications:

Automotive Engine Seals: X rings are used in engine components to prevent oil and fluid leakage, ensuring smooth operation and engine efficiency.

Aerospace Equipment: In aerospace systems, where high pressure and temperature are common, X rings are used to maintain the integrity of hydraulic and pneumatic systems.

3. Factors to Consider When Choosing X rings

1. Material Selection

Choosing the right material for your X rings is crucial. Depending on the operating environment, you need to select a material that offers the appropriate resistance to temperature, pressure, and chemicals. Common materials used for X rings include Nitrile Rubber (NBR), Fluorocarbon Rubber (FKM), EPDM, and Polyurethane (PU). Each material has unique properties that make it suitable for specific applications:

NBR (Nitrile Rubber): Ideal for general-purpose sealing, especially in oil-based applications.

FKM (Fluorocarbon Rubber): Suitable for high-temperature and chemically resistant applications, such as automotive and aerospace systems.

EPDM (Ethylene Propylene Diene Monomer): Best for sealing water, steam, and UV-resistant environments.

PU (Polyurethane): Excellent wear resistance, ideal for high-pressure dynamic applications.

2. Pressure and Temperature Requirements

X rings are often used in high-pressure applications. Therefore, understanding the pressure and temperature requirements of the system is crucial for selecting the right seal material. X rings can handle both high-pressure and high-temperature environments, making them suitable for industrial applications such as hydraulic systems and heavy machinery.

3. Environmental and Chemical Resistance

For certain applications, X rings must resist harsh chemicals and environmental factors. For example, in chemical processing or oil and gas industries, selecting a seal material that can withstand aggressive chemicals is essential to prevent degradation and maintain system integrity.

4. NQKSF is Services and Expertise

As an industry leader in sealing technology, NQKSF provides a comprehensive range of X rings and other sealing solutions tailored to meet the demands of various applications. With over 30 years of experience, we specialize in providing high-quality, reliable sealing systems that enhance equipment performance and longevity.

NQKSF Service Highlights:

Standard Parts in Stock: NQKSF offers an extensive inventory of O-rings, oil seals, and other sealing components, ensuring quick delivery and fast response to urgent needs.

Customized Full-Service Solutions: From material selection to structural design, testing, and production, NQKSF provides a tailored service to ensure each seal meets your specific requirements.

Expertise in Sealing Systems: With decades of industry experience, NQKSF helps optimize sealing systems, reduce maintenance costs, and improve equipment reliability.

X rings are an excellent sealing solution for high-pressure, dynamic, and heavy-duty applications. Whether used in hydraulic systems, rotating equipment, or heavy machinery, X rings provide superior sealing performance in challenging environments. By selecting the right x ring for your equipment, you can ensure reliable operation and long-lasting performance.
