When Should You Choose to Use O-ring Cord?

Number of hits：62025-12-05 13:17:42　

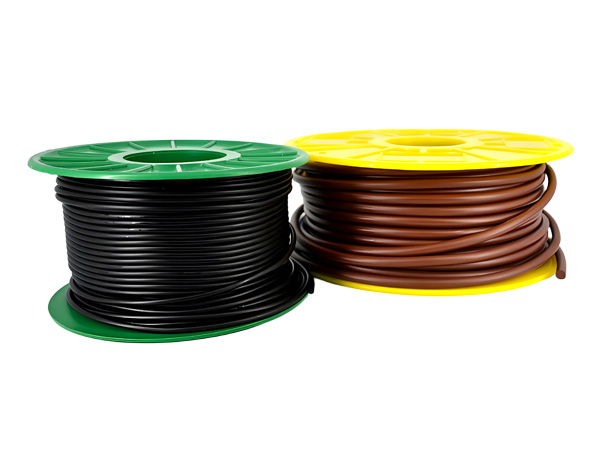

An O-ring cord is a linear, unformed sealing material typically made from elastic materials such as rubber or polyurethane. Unlike pre-formed O-rings, O-ring cord can be cut to any desired length to fit specific sealing grooves or applications. This flexibility makes them an ideal choice for emergency repairs or non-standard sealing needs, where standard O-rings cannot be used.

Key Characteristics of O-ring cord:

Cut-to-Length Flexibility: O-ring cord can be cut on-site to fit the required sealing groove or space.

Adaptability: O-ring cord can be used in non-standard sealing applications and equipment with unique or irregular groove shapes.

Cost-Effective and Quick: O-ring cord are a flexible, affordable solution for both temporary and permanent sealing needs, offering quick adaptation in emergency situations.

2. When to Use O-ring cord?

1. Emergency Repairs or Non-Standard Sealing Grooves

In many industrial applications, equipment failure may occur, and standard O-rings might not fit or be readily available. In such cases, O-ring cord serve as an ideal emergency sealing solution. Since they can be cut to the necessary size, O-ring cord provide a fast and effective way to seal non-standard grooves or emergency repairs until a more permanent solution is available.

Common Applications:

Emergency repairs where a standard O-ring cannot be found or is not available.

Custom-designed equipment with non-standard sealing grooves.

Temporary sealing needs until the correct O-ring is sourced or fabricated.

2. Temporary Replacement for Standard O-Rings

O-ring cord are often used as temporary replacements for standard O-rings in situations where replacement parts are not readily available, or there is a need for a quick solution. This is especially useful when O-rings fail or cannot be sourced in time. O-ring cord help maintain the functionality of equipment by providing an effective temporary seal until a standard O-ring can be obtained.

Common Applications:

Hydraulic systems, where O-rings fail in high-pressure environments, and an O-ring cord is used temporarily.

Construction machinery, such as hydraulic cylinders, where O-ring failure could stop the machine from operating and needs a quick fix.

3. Custom Sealing Requirements

O-ring cord are also ideal for custom sealing applications where the sealing grooves or the shape of the required seal are irregular. In these cases, O-ring cord can be cut and formed to fit exact dimensions. For example, special machinery or non-standard equipment may have sealing grooves that do not accommodate typical, pre-formed O-rings, requiring the flexibility of O-ring cord.

Common Applications:

Irregular sealing grooves or custom-designed machinery requiring a sealing solution not covered by standard O-rings.

Custom-built equipment that needs specific sealing characteristics.

4. Dynamic Sealing Applications

Although O-rings cord can be used for dynamic sealing, their seams become weak points due to their cutting characteristics. During repeated stretching, compression, and friction, stress concentration can easily occur at the seams, leading to material fatigue, cracking, or even complete breakage. Furthermore, the seams may twist or curl due to dimensional mismatch or improper installation, further compromising the sealing effect.

Therefore, for dynamic applications, it is strongly recommended to use one-piece molded O-rings to ensure structural integrity and sealing reliability.

Common Applications:

Piston seals in low-speed hydraulic systems.

Rotary shaft seals in machinery with low rotation speeds or vibration.

3. Factors to Consider When Using O-ring cord

1. Material Selection

When choosing O-ring cord, it is essential to select the appropriate material based on the operating environment, such as the temperature, pressure, and chemicals involved. Common materials for O-ring cord include Nitrile Rubber (NBR), Fluorocarbon Rubber (FKM). Each material has specific characteristics that make it suitable for different applications:

NBR (Nitrile Rubber): Suitable for general-purpose sealing in oil and gas applications, offering good wear resistance and low cost.

FKM (Fluorocarbon Rubber): Ideal for high-temperature and chemical-resistant applications.

2. Sizing and Installation

Since O-ring cord need to be cut to the required length on-site, precise measurement and cutting are critical. The O-ring cord should fit the sealing groove snugly without being too tight or too loose. Installation should be done with care to avoid damaging the strip or causing it to lose its sealing properties.

3. Environmental and Pressure Conditions

It is essential to consider the temperature, pressure, and chemical exposure of the system where the O-ring cord will be used. O-ring cord are suitable for environments that are challenging for standard O-rings, especially when dealing with high-pressure and high-temperature applications. The ability to custom-cut the material allows O-ring cord to perform effectively in various demanding environments.

4. NQKSF is Services and Expertise

As a leader in the sealing industry, NQKSF provides a wide range of O-ring cord and other sealing solutions for various applications. With over 30 years of experience, we offer tailored solutions to meet unique sealing needs.

NQKSF Service Highlights:

Standard Parts in Stock: With an extensive inventory of O-rings, oil seals, and other sealing components, we ensure quick delivery and response to urgent needs.

Customized Full-Service Solutions: From material selection to design, testing, and production, NQKSF offers customized services to ensure every sealing solution is precisely matched to the application.

Expertise in Sealing Systems: Leveraging over three decades of experience, NQKSF helps optimize sealing performance, reduce maintenance costs, and improve equipment reliability.

O-ring cord are a versatile sealing solution that can provide quick and flexible fixes for non-standard sealing applications, emergency repairs, and custom requirements. Whether you're working with hydraulic systems, pneumatic applications, or dynamic sealing, O-ring cord can serve as a reliable alternative to standard O-rings in challenging conditions.
