What Makes the Camshaft Seal Such a Small Part With Such a big Impact on Engine Reliability

Number of hits：152025-08-20 14:55:36　

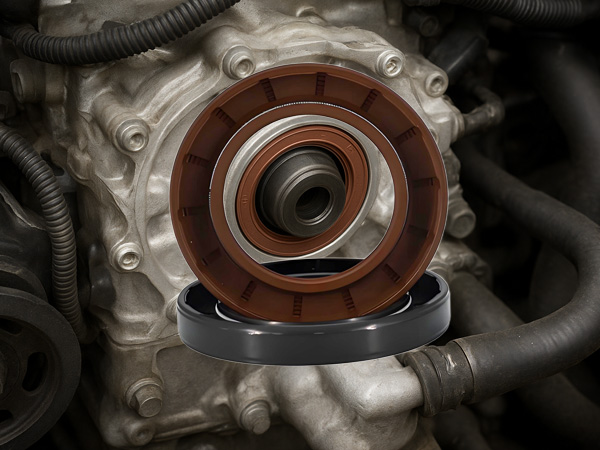

Camshaft seal is a metal Frame seals with a rubber body, a garter spring for lip load, and a sealing edge cut at asymmetric angles so oil wants to head back inside rather than out. Some add a dust lip; when that’s in play, grease the space between lips so the friction heat doesn’t build. You don’t get full oil‑system pressure here, just splash oil and crankcase pulses — but if the breather clogs or head gallery dynamics shift, lip load and differential pressure can change enough to cause trouble.

Surface prep? Think Ra 0.2–0.8 µm, no spiral lead, no eccentricity. Housing bore should grip firmly without crushing the case. Dual‑lip setups will keep grit out in tougher environments, but mind the heat — lubrication and proper venting are your allies.

Materials and Operating Envelope

· NBR – the workhorse. Good oil resistance, cost‑effective, ideal for most passenger car and light commercial work.

· FKM – for hot‑running engines, long service intervals, or biofuel blends; heat and chemical resistance far above NBR.

· HNBR / ACM – tuned for specific OEM needs where heat/oil/ozone balance matters.

PTFE – friction‑friendly, happy with dry starts and high‑speed shafts.

Shore A hardness runs 70–85 for most designs. Temperature capability depends on the compound — a realistic spread is ‑40 °C to +250 °C. Static pressure rating matters less here than how the lip handles pulsation and return‑oil behaviour.

When and Why to Replace

Camshaft seal leaks don’t politely warn you. Oil on a timing belt is bad news — slip, noise, timing scatter, and in worst cases, belt failure. That’s why seasoned techs swap seals during timing belt jobs. You’re in there already; skipping it risks a repeat teardown.

Where They Sell and Who Needs Them

· Passenger cars and light trucks

· Heavy‑duty trucks

· Construction and agricultural engines

· Generator sets

· Marine diesels

Keep the mainstream Asian/European/American sizes in NBR/FKM on hand; niche fleets might warrant HNBR or PTFE. Custom diameters? NQKSF runs expedited pilot lots with tooling support.

NQKSF Services and Supply Strength

· Standard parts, ready to ship – Thousands of O‑rings, oil seals, and camshaft seals in stock for same‑day dispatch.

· Full‑cycle custom service – From material choice to design tweaks and production testing, tailored to the application.

· Technical enablement – Over 30 years in sealing, helping partners boost seal life, trim maintenance budgets, and keep uptime high.

Company at a Glance: In‑house manufacturing, 80+ export destinations, provincial technology innovation center status, recognised as a specialised high‑tech enterprise, embedded in a leading industrial cluster.

FAQ

Q: Which part numbers move fastest?

A: NBR/FKM for popular Asian/Euro/US passenger platforms; high‑temp FKM for heavy‑duty fleets.

Q: Lead times?

A: Standard lines ship from stock; customs as quick as two weeks with tooling in place.

Q: Do you analyse failures?

A: Yes — send photos of contact bands and shaft wear, we’ll spot lead marks, lip damage, or eccentricity and advise.

Q: Packaging options?

A: Private label with barcodes and batch traceability for easy inventory and audit.
