The Role of Radial Shaft Seals in Modern Industrial Applications

Number of hits：182025-08-19 09:47:50　

Rotating machinery performs different tasks every day. What makes it so stable and efficient? Take a closer look. you quickly learn that a lot of reliability issues trace back to something small — the seal on a shaft that spins day in and day out. The radial shaft seal family is one specified, installed, and inspected more times than engineer can count, whether on a wind turbine gearbox 80 meters up or in a workshop rebuilding an old hydraulic pump.

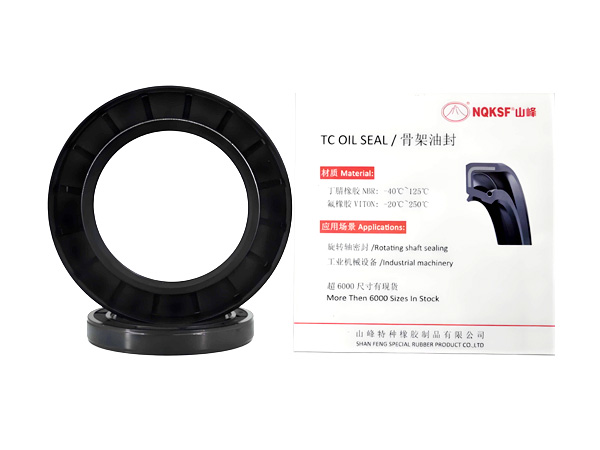

Radial shaft seals live in that narrow space between moving and fixed parts. On the outside there’s a cylindrical shell that grips into the housing bore for a static seal. Inside, the real work happens at the lip. That lip — shaped from an elastomer or sometimes a thermoplastic — rides directly on the shaft surface. A garter spring gives it a measured squeeze so the contact line stays tight enough to hold back oil yet light enough not to overheat. In some designs, we’ll spec an extra dust lip in front, with a dab of grease between the two. That little detail can buy months of extra life in abrasive conditions.

Material choice is never an afterthought. In mild climates, NBR does the job. On hot-running transmissions or steel plant equipment, FKM earns its keep. PTFE-based blends have saved more than one installation for us in marine environments where salt spray and heat work together to chew through softer rubbers. We’ve even added special coatings on the outer diameter when the housing bore finish wasn’t perfect — a trick that’s prevented leak paths without tearing down the whole assembly.

Where do radial shaft seals show up? Pretty much anywhere you’ve got a shaft that turns and oil you don’t want escaping: gearboxes, speed reducers, axles, steering columns, pump drive ends. In cranes — a sector we know well — they’re guarding slewing drives, winch gearboxes, even the hydraulic motor outputs on auxiliary systems.

From the NQKSF side, our approach is shaped by three decades in the trade:

· Stock on hand when it matters: We keep thousands of sizes ready to go — if a crane is down, waiting weeks is not an option.

· Custom builds without the drama: Matching the right compound and lip geometry to the job, running trials when needed, then delivering within days, not months.

· Engineering backup: Sometimes the seal is fine but the groove is off, or the shaft finish is too rough. We’ll flag it and help the client fix the root cause, not just swap parts.

For distributors and OEM, this matters because your customer isn’t asking about Shore hardness or pump-back rate — they’re asking when their machine will be lifting again. That’s why we care as much about lead times and repeatability as we do about lab test curves.

A couple of common conversations I have with partners:

Q1: Can you match an old imported part no longer made?

A1: Yes. Send it in, we’ll measure every dimension, check the lip profile under a microscope, and build an equivalent. In some cases we’ve improved the elastomer choice to suit current fluids.

Q2: How do you handle mixed environments — say, dust and splash water?

A1: We often combine a high-durometer primary lip with a secondary dust lip, plus recommend a lubricant film between them. It balances sealing and wear.

Radial shaft seals might be small compared to the machines they protect, but they decide whether that gearbox or pump runs another year or fails next month. Choosing the right one — and working with a supplier who’s seen the pitfalls — is how you keep that decision in your hands, not in the hands of chance.
