NBR vs FKM Oil Seals: How to Choose the Right Rubber Material?

Number of hits：512026-10-19 15:49:58　

Choosing the right rubber material is an important part of oil seal selection. NBR and FKM are two commonly used elastomers in rotary shaft oil seals, but they differ in temperature resistance, fluid compatibility, and performance under specific operating conditions. The right choice depends on the lubricant, operating temperature, shaft speed, and working environment.

What is an NBR Oil Seal?

NBR, or nitrile butadiene rubber, is widely used in oil seals because it offers a practical balance of oil resistance, wear resistance, and cost.

NBR oil seals are commonly used with many mineral oils, lubricating oils, and greases. They are suitable for a wide range of industrial equipment, automotive components, gearboxes, pumps, and general mechanical applications when the operating conditions are compatible with the material.

However, NBR has limitations. Its performance can deteriorate when exposed to excessive heat, certain chemicals, ozone, or incompatible fluids. The actual operating temperature range depends on the specific NBR compound and the application.

What Is an FKM Oil Seal?

FKM is a fluoroelastomer known for its resistance to elevated temperatures and many oils, fuels, and chemicals. Compared with conventional NBR compounds, FKM often provides better performance in demanding thermal and chemical environments.

FKM oil seals are commonly considered for applications involving higher operating temperatures, certain fuels, aggressive lubricants, and chemical exposure. They may be used in automotive systems, industrial machinery, and equipment where standard NBR materials cannot provide the required service performance.

Nevertheless, FKM is not resistant to every chemical or fluid. Compatibility must be checked against the actual medium, temperature, and exposure conditions. FKM compounds can also differ in their low-temperature flexibility and other properties.

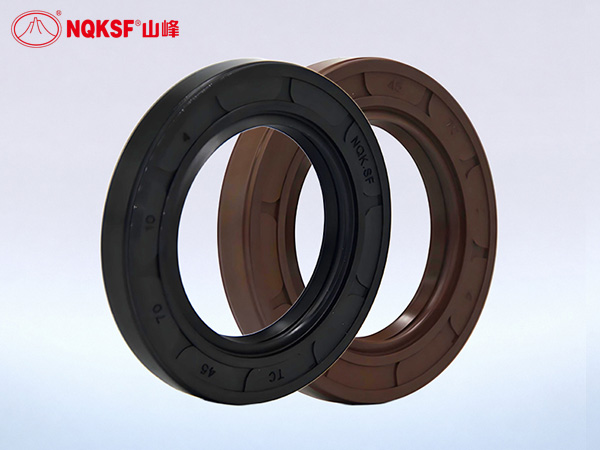

Key Differences Between NBR and FKM

The main difference is not simply that one material is better than the other. Each material is suitable for different operating conditions.

Temperature resistance: FKM generally performs better at elevated temperatures, while NBR is often suitable for moderate-temperature applications. Exact limits depend on the compound and operating conditions.

Fluid compatibility: Both materials resist many oils, but their compatibility with fuels, additives, cleaning agents, and other chemicals can differ. Always verify compatibility with the actual fluid.

Cost considerations: NBR is generally the more economical choice for many conventional applications. FKM may involve a higher material cost, which can be justified when its temperature or chemical resistance is needed.

Low-temperature performance: Standard NBR and FKM compounds do not all behave the same way at low temperatures. If equipment operates in cold environments, check the compound's low-temperature rating rather than relying only on the material name.

How to Select the Right Material for Your Application

Before ordering an oil seal, consider four key factors.

First, identify the fluid that the seal will contact. Mineral oil, synthetic lubricant, fuel, water-based fluid, and chemical media may require different material choices.

Second, confirm both the normal operating temperature and any temperature peaks. A seal that works under normal conditions may deteriorate if the actual temperature regularly exceeds the compound's capability.

Third, consider shaft speed, lubrication, and operating conditions. Material selection alone cannot compensate for incorrect seal dimensions, a damaged shaft surface, excessive runout, or unsuitable installation.

Finally, verify the seal design and material specifications. The lip profile, spring arrangement, housing dimensions, and shaft finish all influence sealing performance. The selected elastomer must work together with the complete seal design.

NBR or FKM: Which Should You Choose?

NBR is often a suitable starting point for general oil-sealing applications where the fluid and temperature are within its operating limits. FKM is worth considering when higher temperatures or exposure to certain oils, fuels, or chemicals require a more resistant elastomer.

There is no universal choice for every application. Confirming the fluid, temperature, operating conditions, and material compatibility before purchasing can help reduce premature seal failure and unnecessary replacement costs.

NQKSF supplies oil seals in different materials and configurations for industrial and automotive applications. When selecting a replacement or planning a bulk order, provide the required dimensions, operating temperature, fluid type, and equipment application so that the appropriate specification can be identified.
