How to Select Oil Seals for Harsh Environments: High Pressure, Dust, Low Temperature and Muddy Conditions?

Number of hits：212026-10-13 00:00:00　

Oil seals used in harsh environments must be selected according to the actual operating conditions rather than dimensions alone. High pressure, abrasive dust, low temperatures, and mud or water exposure can place very different demands on a sealing system. Choosing a suitable seal structure and material helps reduce premature wear, leakage, and unplanned maintenance.

A seal that performs well in a standard gearbox may not be suitable for an agricultural machine operating in muddy fields or equipment exposed to extreme cold.

High-Pressure Applications Require Special Attention

Conventional radial shaft oil seals are generally designed for applications with little or no pressure difference across the seal. Excessive pressure can deform the sealing lip, increase contact stress, and cause premature failure.

If the equipment operates under significant pressure, the first step is to confirm the seal's rated pressure under the actual operating conditions. A pressure-rated rotary seal or a suitable hydraulic sealing design may be necessary, depending on whether the movement is rotary or reciprocating.

Pressure, shaft speed, temperature, and seal design must be considered together. A seal should not be treated as suitable for high-pressure service simply because it fits the housing.

Dust and Abrasive Particles Call for Better Contamination Protection

Construction machinery, mining equipment, and agricultural machines often operate in environments containing dust, soil, and abrasive particles.

When these contaminants reach the sealing interface, they can accelerate wear on both the lip and shaft. A conventional double-lip oil seal may provide useful protection in some applications, while more severe environments may require additional exclusion features or a specialized multi-stage sealing arrangement.

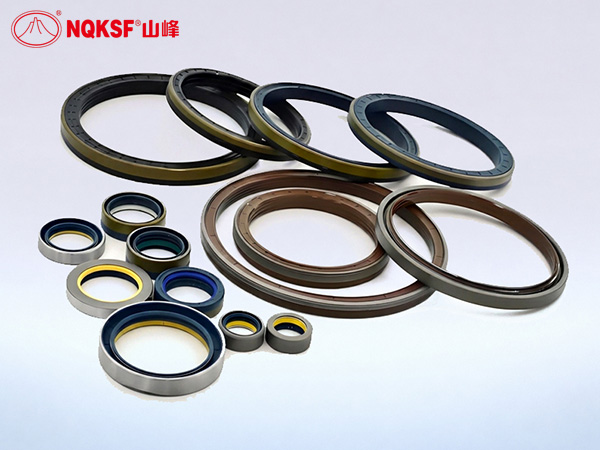

Cassette seals and combination seals are examples of designs used in certain heavily contaminated applications. Their suitability depends on the equipment, installation space, shaft arrangement, and expected contamination level.

Low Temperatures Affect Material Flexibility

At low temperatures, some elastomers become less flexible. If the material is not suitable for the operating temperature, the sealing lip may not maintain the intended contact with the shaft.

NBR is widely used in general oil-sealing applications, but its low-temperature performance depends on the specific compound. FKM is often selected for elevated-temperature and certain fluid-resistance requirements, but it should not automatically be considered the best choice for cold environments.

For low-temperature service, check the compound's specified temperature range, the lubricant's behavior, and the equipment's starting conditions. The minimum starting temperature can be as important as the normal operating temperature.

Mud and Water Exposure Require Environmental Protection

Agricultural machinery and off-road equipment may encounter mud, splash water, and frequent washing. In these conditions, the seal must control lubricant leakage while limiting the entry of external contaminants.

Depending on the design, additional dust lips, cassette seals, or other dedicated sealing arrangements may be considered. Material compatibility with water, cleaning agents, and the internal lubricant should also be verified.

A standard oil seal should not be assumed to provide water immersion protection unless the manufacturer specifies that capability.

Match the Seal to the Actual Working Conditions

Before choosing an oil seal for a harsh environment, confirm the movement type, pressure, shaft speed, operating and starting temperatures, lubricant, external contaminants, and available installation space.

These details help determine whether a standard radial shaft seal is appropriate or whether a specialized design is needed. The most suitable choice is the one whose structure and material match the real operating conditions, not simply the one with the highest claimed performance rating.
