What Operating Conditions Are Suitable for High Temperature Oil Seals?

Number of hits：242026-09-08 11:48:17　

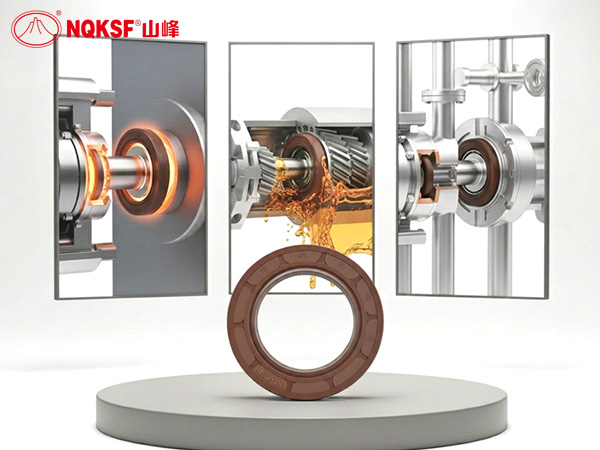

High temperature oil seals are appropriate when the sealing position is exposed to sustained heat or repeated temperature peaks that exceed the practical range of a conventional sealing material. Typical situations include hot engines, transmissions, industrial gearboxes, pumps, compressors, high-speed rotating equipment, and machinery installed close to heat-generating components. The exact seal, however, still depends on the fluid, speed, pressure, and mechanical environment.

Where Does the Heat Come From?

Not all high-temperature applications are hot for the same reason.

In an engine or transmission, heat may come from the surrounding powertrain and lubricating oil. In a high-speed motor or gearbox, friction at bearings and the sealing lip can contribute to the temperature around the shaft. Pumps and compressors may combine high shaft speed with process-fluid temperature. Industrial equipment may also transfer heat from nearby heaters, furnaces, or production processes.

This distinction matters because the seal experiences the conditions at its own installation position, not simply the temperature stated for the machine.

A shaft running at high speed can create additional heat at the sealing interface. Poor lubrication, excessive lip contact, shaft runout, or an unsuitable shaft surface can increase this effect further. Therefore, a machine operating at a moderate bulk temperature can still create a demanding sealing environment.

Typical Industrial Situations

Automotive and engine applications are common examples. Oil seals around crankshafts, camshafts, and other rotating components may encounter elevated temperatures together with engine oil and continuous shaft movement. Depending on the position and duty cycle, FKM or other heat-resistant materials may be considered instead of standard NBR.

Industrial gearboxes present a different combination. The main concerns may be continuous operating temperature, lubricant compatibility, shaft speed, and long operating cycles. If the gearbox works near a heat source or operates continuously under load, thermal aging of the sealing material becomes an important consideration.

Pumps and compressors can be more complicated because temperature may be accompanied by higher shaft speed, pressure, or unusual fluids. In these applications, a specialized rotary seal construction, including PTFE-based designs, may be considered where low friction, chemical resistance, or high-speed performance is required.

High-temperature oil seals can also be relevant to industrial motors, generators, fans, and other rotating equipment when the bearing or shaft area operates at elevated temperature for extended periods.

Heat Does Not Automatically Mean FKM

FKM is commonly associated with high-temperature oil sealing because it offers good resistance to heat and many oils and fuels. But the correct material depends on the complete operating environment.

ACM, for example, can be suitable for certain hot lubricating-oil applications, while PTFE can become attractive when high temperature is combined with high speed, chemical exposure, or low-friction requirements.

Therefore, “high-temperature application” should be treated as a description of the operating condition rather than a product category with one universal material.

Before choosing the seal, identify where the heat comes from, how long it lasts, what fluid is present, how fast the shaft rotates, and whether pressure or contamination is involved.

That information provides a much more useful basis for high-temperature oil seal selection than temperature alone.
