How to Select the Appropriate Skeleton Oil Seal Model for Industrial Machinery?

Number of hits：262026-03-29 11:32:53　

In industrial machinery, skeleton oil seal (radial shaft seals) are essential components that ensure the proper operation of bearings, gearboxes, and hydraulic systems. Many engineers focus only on size or brand when selecting a seal, but in reality, choosing the correct model is far more important. An incorrect model can lead to leakage, wear, increased failure rates, and higher maintenance costs.

· Understanding the operating conditions is the first step

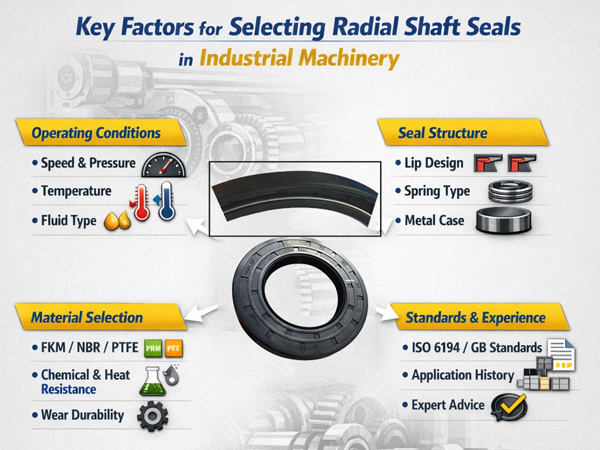

Before selecting a skeleton oil seal, you must have a clear understanding of the machine’s working conditions, including:

Shaft diameter and rotational speed: High‑speed shafts require seals with better wear resistance and lip stability.

Pressure range: High‑pressure environments may require reinforced seals or designs with springs to ensure sealing reliability.

Temperature variation: High temperatures accelerate seal aging, while low temperatures require materials with good elasticity.

Type of medium: Lubricating oil, hydraulic oil, or chemical fluids directly affect material compatibility.

Only when the operating conditions are clearly defined can you narrow down the appropriate model range.

· Select the proper seal structure

The structural design of a skeleton oil seal directly affects sealing performance and service life. Key structural parameters include:

Lip design: single lip, double lip, or scraper lip—each with different dust protection, sealing, and friction characteristics.

Spring type: Springs maintain lip pressure and sealing stability; high‑speed or high‑pressure shafts may require reinforced springs.

Metal case material: Steel cases offer high wear and temperature resistance; polyamide cases are lightweight and suitable for medium‑ to low‑load applications.

Matching the structure to shaft diameter, speed, lubrication method, and environment can significantly extend seal life.

· Match materials with the model

The rubber or elastomer material of the seal is another critical factor. Common materials include:

FKM: excellent high‑temperature, oil, and chemical resistance; ideal for continuous operation and high‑temperature environments.

NBR: cost‑effective, good oil and wear resistance; suitable for medium‑ to low‑temperature general industrial machinery.

HNBR: better wear and tear resistance than NBR; suitable for frequent motion or high‑load equipment.

PTFE composites: excellent chemical resistance and low friction; suitable for special fluids or high‑speed rotation.

Material selection must match lip design, spring force, and performance requirements. Even with the correct size, sealing performance may fail if the material is mismatched.

· Refer to standards and industry experience

International standards such as ISO 6194‑1 and national standards like GB/T 13871.1-2022 provide basic guidelines. Combining these with the equipment manufacturer’s historical selections and seal supplier’s application analysis helps reduce risk.

Industry experience shows:

High‑speed, small‑diameter shafts benefit from reinforced lips and high‑wear‑resistance materials.

Heavy‑load, long‑running gearboxes should prioritize FKM or HNBR with steel‑case seals.

Chemical environments require PTFE composite seals for long‑term stability.

Selecting the right skeleton oil seal model is not about checking a size chart or choosing a well‑known brand. It is a comprehensive decision based on operating conditions, structural design, material selection, and reference standards. When these factors align, you can choose a reliable, durable seal that improves equipment stability and maintenance efficiency.
