How to Select the Right Oil Seal for Rotating Shaft Applications?

Number of hits：202026-01-24 09:55:10　

In rotating shaft sealing applications, no single solution can cover every scenario. Variations in speed, temperature, lubrication method, and shaft oscillation all have a direct impact on how an oil seal performs. For this reason, proper selection must be based on the actual operating conditions rather than relying on a so‑called universal model. From industry experience, the most common working conditions can be grouped into several categories.

Continuous Unidirectional Rotation

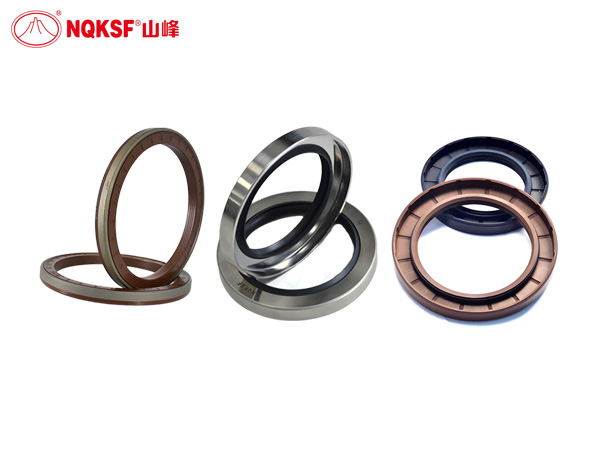

For equipment such as motors, gear reducers, and pumps, rubber oil seals with a metal case remain the most common choice. Nitrile rubber is widely used due to its good oil resistance and cost efficiency. When temperatures or surface speeds increase, fluorocarbon rubber becomes a more reliable option thanks to its superior heat resistance and aging stability.

High‑Speed Rotation

In high‑speed applications—such as high‑speed motors or machine tool spindles—traditional rubber oil seals often struggle with friction heat, leading to lip burning or premature wear. These conditions typically require low‑friction fluorocarbon oil seals or seals made entirely from polytetrafluoroethylene. PTFE offers extremely low friction and excellent temperature resistance, and it can tolerate short periods of dry running, though it comes at a higher cost.

Small‑Angle Oscillating Motion

Some equipment does not rotate continuously but instead oscillates within a small angle, such as ±10 or ±20 degrees. Standard oil seals tend to develop fatigue cracks in these conditions because the lip repeatedly bends back and forth. For such applications, specialized oscillating seals are used, featuring materials and lip designs optimized for fatigue resistance.

Large‑Angle Reciprocating Motion

When the oscillation angle becomes much larger—such as the ±180‑degree motion commonly found in industrial robot joints—traditional oil seals are no longer suitable. These applications typically use PTFE seals with spring‑energized lips to achieve lower friction, stable contact pressure, and longer service life. This design has become the standard for robotic joint sealing.

Contaminated or Harsh Environments

In environments with mud, water, or heavy dust—such as construction or agricultural machinery—contamination control is critical. Standard oil‑seal dust lips are often insufficient for long‑term exposure to debris. Cassette oil seals with more complex structures and longer sealing paths are commonly used to improve dirt resistance and extend service life.

Selecting an oil seal for a rotating shaft must always be based on the specific working conditions. By understanding key parameters such as speed, temperature, lubrication method, and oscillation angle, it becomes much easier to determine the appropriate sealing structure and achieve reliable long‑term performance.
