Among various sealing solutions, o rings are one of the most widely used and structurally simple sealing components. Despite their simplicity, the size standard, material selection, and installation method directly influence the reliability and service life of the sealing system.

This article provides a structured overview of o ring size standards, key dimensional parameters, common specifications, and material‑selection principles to support engineering design and technical decision‑making.

Common O Ring Size Standards

Industrial applications primarily rely on two major o ring size standards.

ISO 3601 (International Standard)

ISO 3601, issued by the International Organization for Standardization, is one of the most widely adopted o ring size specifications worldwide.

Defines inner diameter (ID) and cross‑section diameter (CS)

Suitable for hydraulic, pneumatic, automotive, and general machinery applications

Facilitates global equipment compatibility and replacement

AS568A (U.S. Standard)

AS568A, also known as MIL‑S‑8805, is widely used in equipment built under U.S. standards.

Common in aerospace, defense, and imported machinery

Uses a numbering system for intuitive selection

Frequently applied in high‑precision and mature industrial systems

Key Dimensional Parameters

Two core parameters determine whether an o ring is suitable for a given application:

The outer diameter (OD) can be calculated as:

OD = ID + 2 × CS

OD is mainly used for installation‑space evaluation, while ID and CS remain the primary selection parameters.

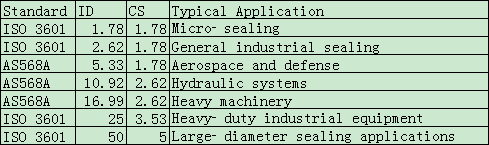

Common O Ring Size Examples (mm)

O ring selection should always be confirmed against groove geometry, tolerances, and operating conditions.

Common O Ring Materials and Suitable Environments

Different materials vary significantly in media resistance, temperature tolerance, and service life. Proper material selection is essential for sealing reliability.

Selection and Installation Considerations

In practical applications, the following factors often matter more than size alone:

Size matching: Confirm groove dimensions and ensure proper compression ratio

Material compatibility: Select materials based on the working medium to avoid chemical degradation

Installation method: Prevent excessive stretching, twisting, or surface damage; use compatible lubricants when needed

Operating conditions: For high‑temperature, high‑pressure, or dynamic applications, consider material hardness and structural design together

Although o rings are small components, their size standards, material properties, and installation details directly determine sealing stability and maintenance cost. Understanding common standards and selection principles helps reduce unnecessary risks during design and maintenance.

If you need support in selecting o rings for specific operating conditions such as pressure, temperature, medium, or structural constraints, feel free to reach out for more targeted technical guidance.
