What Factors Help O Rings Improve Vacuum Stability in Sorting Robot Applications?

Number of hits：522026-01-03 13:40:31　

The sealing stability of a sorting robot’s vacuum suction cup directly determines the reliability of the vacuum gripping process. Among all sealing components, the O-ring plays a critical role. Proper material selection, correct compression, and precise installation are essential to maintaining consistent vacuum performance. The following key points can help ensure stable and reliable vacuum adhesion.

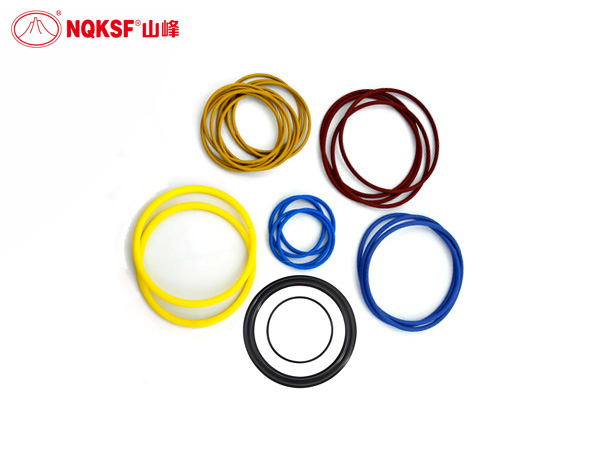

O-Ring Material Selection

Choosing the right elastomer is the foundation of vacuum sealing stability.

Nitrile Rubber (NBR)

NBR offers good wear resistance and low gas permeability, making it suitable for most standard vacuum systems. It typically operates within a temperature range of -40°C to 125°C. However, its performance may degrade in high-temperature environments or when exposed to strong chemicals.

Fluoroelastomer (FKM)

FKM provides excellent resistance to high temperatures, up to approximately 250°C, as well as strong resistance to oils and chemicals. Due to its low outgassing rate, it is well suited for vacuum systems with higher sealing requirements, especially in harsh operating conditions.

Perfluoroelastomer (FFKM)

FFKM offers outstanding thermal stability, with temperature resistance up to 325°C, and exceptional resistance to strong acids and alkalis. It is mainly used in extreme environments where standard elastomers fail. Due to its high cost, FFKM is generally reserved for specialized applications.

Installation and Design Considerations

Even the best material cannot perform well without proper installation.

Compression Ratio

For dynamic sealing applications, the recommended compression ratio is typically between 6 and 20 percent.

For static sealing applications, the compression ratio should be controlled between 15 and 30 percent.

Excessive compression can accelerate material aging, while insufficient compression may lead to air leakage.

Groove Design

The groove width should be at least 1.4 times the O-ring cross-section diameter to allow proper deformation.

The groove inner diameter should be slightly smaller than the O-ring inner diameter to ensure correct positioning and sealing.

Surface Finish

The sealing surface roughness should be controlled at Ra 0.8 micrometers or lower.

All groove surfaces must be free of burrs and sharp edges to prevent cutting, extrusion, or premature damage to the O-ring.

Common Pitfalls to Avoid

Lubricants containing molybdenum disulfide should be avoided, as they may chemically interact with elastomer materials and reduce sealing performance.

In high-precision vacuum systems, helium permeability should be carefully controlled, as gas permeation can affect long-term vacuum stability.

Regular inspection and replacement are essential. Over time, O-rings may fail due to wear, aging, or contamination, even under normal operating conditions.

The contact surfaces of both the suction cup and the workpiece should be kept clean. Dust, oil, or foreign particles can compromise sealing integrity. Periodic cleaning or the use of filtration systems is recommended.

By selecting the appropriate O-ring material, optimizing groove and compression design, and following standardized installation practices, the vacuum sealing stability of sorting robot suction cups can be significantly improved. These measures help ensure reliable gripping performance, longer service life, and reduced downtime.
