Understanding U-Cup Seals in Hydraulic and Industrial Applications

Number of hits：512025-09-30 15:38:12　

In hydraulic and pneumatic systems, seals are the small parts that often determine whether large, expensive machines can keep running smoothly. Among the many types of sealing elements, U-cup seals stand out because of their distinct shape and reliable performance under pressure. Many engineers, distributors, and maintenance teams encounter them daily, yet there is often confusion about when to choose a U-cup seal instead of an O-ring or a standard rotary oil seal.

What Makes U-Cup Seals Different?

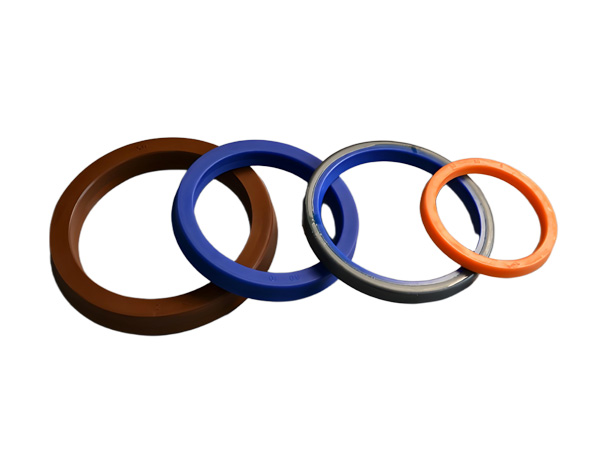

The cross-section of a U-cup seal resembles the letter “U.” This geometry gives it a natural ability to expand its lips outward when subjected to pressure, creating a tighter contact against the metal surface. Compared to O-rings, which are effective in static sealing, U-cup seals adapt better to reciprocating motion and withstand pressure spikes without being squeezed out of the groove.

In terms of material options, manufacturers commonly use polyurethane (PU), fluorocarbon rubber (FKM). Polyurethane grades are preferred in hydraulic cylinders because of their abrasion resistance, while FKM are chosen for high-temperature or chemically aggressive environments. Understanding the differences between materials helps buyers reduce premature failures and avoid unplanned downtime.

Key Application Fields

U-cup seals are most frequently used in industries where high-pressure reciprocating motion is unavoidable:

· Hydraulic cylinders and pneumatic actuators in manufacturing equipment.

· Construction machinery, such as excavators, loaders, and cranes, where shock loads are common.

· Metallurgical and chemical equipment, which often operate in harsh continuous cycles.

· Energy and automation, including wind turbine hydraulic adjustment systems and robotic arms.

In all these cases, the role of the seal is not just to prevent leakage but also to maintain stable pressure. If a seal fails, the cost of lost production or equipment repair is usually far greater than the price of the seal itself.

Questions Distributors Often Raise

When speaking with distributors or wholesale buyers, certain questions repeat themselves:

· “Do you keep these items in stock?” Downtime is costly, so fast delivery matters more than price in many situations.

· “Can you support non-standard dimensions?” Custom hydraulic cylinders or imported machinery often require unique sizes.

· “How long will the seals last?” Buyers are less concerned with a single unit price and more focused on reliability and warranty periods.

These questions reveal the core of the market: stable supply, flexibility, and trust in product life cycle performance.

How NQKSF Responds to Market Needs

NQKSF has built its services and production system around these requirements:

· Standard parts available for immediate shipment – covering O-rings, oil seals, U-cup seals, and thousands of other sizes to meet urgent replacement needs.

· Customized service from start to finish – including material selection, design refinement, and production testing to deliver seals tailored to specific operating conditions.

· Technology-driven support – with more than 30 years of industry experience, the company assists customers in optimizing seal performance, reducing maintenance costs, and improving overall reliability.

At the enterprise level, NQKSF highlights:

· A modern manufacturing facility with complete model ranges kept in stock.

· Global distribution to over 80 countries, supplying well-known international brands.

· Recognition as a provincial technology innovation center and “specialized and innovative” enterprise.

· High-tech certification and leadership in regional industrial clusters.

These strengths are exactly what wholesale buyers and long-term distributors look for when selecting a sealing partner.

U-cup seals may appear simple, yet their impact on the reliability of hydraulic and pneumatic equipment is substantial. For equipment manufacturers, distributors, and maintenance providers, understanding material choices and application limits is essential for keeping systems running efficiently.
