What Are the Common Types of Industrial Seals?

Number of hits：292025-09-08 14:08:27　

The choice of industrial seals type and material often determines whether equipment comfortably exceeds its design life. Using real operating conditions as the thread, this article summarizes the essentials—types, materials, pressure and temperature windows—for decision-makers in pumps, electric motors, gearboxes, engines, hydraulic systems, industrial machinery, robotic arms and industrial robots, construction equipment, wind power, metallurgy, chemicals, agricultural machinery, water treatment, as well as automotive and heavy-duty vehicles.

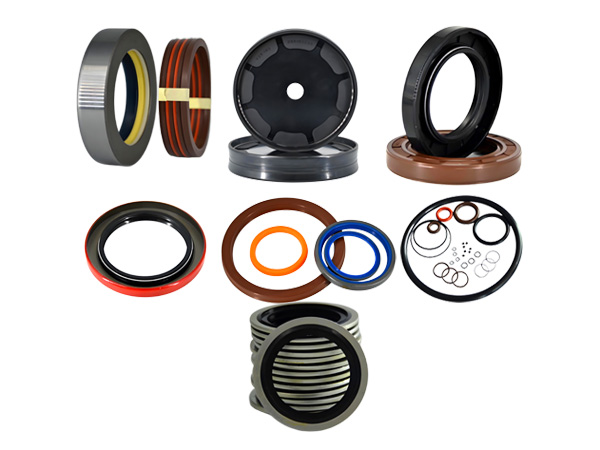

Common Types of Industrial Seals

· O-Rings

Where they work: Static sealing and slow reciprocation—pump covers, valve bodies, hydraulic fittings, pneumatic modules.

Materials: NBR for mineral oils at moderate temperatures; FKM for higher temperatures and fuels; EPDM for hot water and steam; VMQ for low temperature and clean environments (including adjacent home-appliance contexts).

Typical window: Pressures up to several tens of MPa (depending on groove design and squeeze); temperature roughly from -60°C to +250°C (material dependent).

What really matters: Groove geometry and squeeze rate trump the “thicker is safer” myth. Hardness (Shore A 70/80) and media-induced swell directly influence extrusion risk and rebound.

· Radial Shaft Seals (Oil Seals)

Where they work: Rotating shafts in motors, reducers, engines and pumps, balancing lubrication and exclusion.

Materials: NBR (general and cost-effective), FKM (high-temp and fuels), PTFE (higher surface speed, marginal lubrication or short dry-run tolerance).

Typical window: Maximum surface speed is constrained by temperature; lip contact pressure and eccentricity tolerance define life.

What really matters: Shaft roughness (Ra) and hardness (HRC) shape lip wear. Return grooves and auxiliary dust lips are critical in dusty/muddy environments, construction machinery and wind power pitch/yaw positions are classic examples.

· Skeleton Oil Seals

Structure: Rubber lip reinforced by a metal insert for concentricity and lip stiffness.

Where they shine: Higher speeds, minor shaft runout, and constrained installation spaces—commonly in automotive, heavy-duty and industrial gearboxes.

· Hydraulic Seals

Subtypes: Piston seals, rod seals, guide rings, V-packing, buffer seals and back-up rings.

Materials: PU (abrasion and extrusion resistance), PTFE (low friction, anti-stick-slip), NBR (broad media compatibility).

Typical window: System pressures at 35–50 MPa are common; bidirectional pressure and micro-velocity creeping are life-limiters.

What really matters: Counter-surface roughness and coating, guide-ring clearance, and back-pressure design decide whether the seal works efficiently or struggles. Chemical and metallurgical environments add temperature drift and media aggressiveness to the equation.

· Pneumatic Seals

Where they work: Pneumatic cylinders, actuators, valve stems, and robotic end-effectors, typically in automation, packaging, and assembly lines where compressed air is the driving medium.

Materials and parts: Commonly nitrile rubber (NBR). Secondary elements can be wear rings, wipers, and cushioning seals to manage side loads and contamination.

Typical window: Low to moderate pressure (generally below 1.0 MPa), high cycle frequency, and clean or lightly lubricated air. Performance is defined by low breakaway friction, rapid response, and resistance to wear under repetitive motion.

What really matters: Surface finish and lubrication quality in the cylinder bore directly affect seal life. Seal lip geometry should be optimized for minimal friction without compromising sealing efficiency. Contaminants such as dust or moisture in the air supply can accelerate wear, so filtration and air preparation are critical.

Special Profiles (V-rings, U-rings, etc.)

Why they exist: Optimized for one- or two-way pressure, reciprocation, micro-velocity, eccentricity and vibration.

Where they’re used: Hydraulic systems, construction equipment, molding machines and a variety of actuators.

· Materials, pressure and temperature: how limits actually behave

Temperature is not a single threshold, it interacts with pressure, surface speed and media. FKM is robust at higher temperatures with fuels, but amines and certain polar media call for careful verification.

Pressure alone does not “force a seal to work.” Back-up rings, anti-extrusion geometry and proper guidance share the burden.

For high surface speed and uncertain lubrication, PTFE and certain composites reduce frictional heat; short dry-run tolerance is a stopgap, not a normal operation mode.

Media compatibility is the baseline: mineral oils, synthetic esters, water glycol, liquid ammonia and particle-laden wastewater each drive different swell, hardness shift and wear modes.

FAQ

Q1: How to set safety stock?

A1: Keep A-class inventory for NBR/FKM O-rings and common oil seals; hold B-class on PTFE and special profiles; manage industrial seals project-by-project with approved BOMs.

Q2: Can I substitute materials?

A2: With temperature and media safety confirmed, moving from NBR to FKM is common, but adjust hardness and squeeze to avoid assembly stress deviation.

Quality assurance and traceability

For industry audits: batch traceability, material reports (e.g., RoHS/REACH) and temperature/pressure test curves are must-haves.

For wind power, metallurgy and chemicals: offer a joint confirmation sheet covering counter-surface roughness, substrate hardness and assembly torque to minimize disputes.

Cost-down that doesn’t cost you later

Cost reduction is not about “cheaper materials,” it’s about “appropriate materials.” If high-temperature duty is a small fraction of the cycle, a mixed strategy—FKM where needed, NBR elsewhere—often wins total cost of ownership.

Extending maintenance intervals beats shaving cents off unit price. Less downtime is the cleanest cost control.

NQKSF Services

· Ready-to-ship standard parts: Over ten thousand specifications of O-rings, oil seals and more, with robust inventory and fast response for urgent demands and cross-region dispatch.

· Full-scope customization: From material selection and structural design to production and testing, we tailor non-standard seals to your specific medium, temperature, pressure, speed and assembly constraints.

· Technical enablement: Backed by 30+ years of experience, we help tune contact pressure, lubrication and support geometry to lower maintenance costs and raise equipment reliability.

Strengths

· Manufacturing at the core, broad model coverage and ready stock, supplying customers in 80+ countries.

· Long-term collaborations with recognized global brands; continuous progress through provincial-level innovation platforms in materials and processes.

· Accredited as a specialized and innovative enterprise and a high-tech enterprise, maintaining a strong reputation within a specialized industrial cluster.

Industrial seals selection is less about memorizing catalogs and more about respecting the real boundaries of your application. At NQKSF, we start by clarifying the problem, then we ship the right parts. Your equipment—and your schedule—both get a quieter life.
