What Makes PTFE Stainless Shaft Seals the Right Choice for OEM and Industrial Distributors?

Number of hits：232025-08-27 13:14:36　

Leaks don’t look expensive—until they stop a line. That sums up the job of a shaft seal in tough environments. NQKSF is PTFE stainless shaft seal series is built for the gray zone between “should be fine” and “keeps failing”: higher surface speeds, mixed media, temperature swings, slight runout—exactly where generic elastomer seals start to suffer.

Where it fits and why it matters

You’ll see the best return in pumps, industrial motors, gearboxes, engine auxiliaries, general machinery, robotic arms and industrial robots, hydraulic power units, chemical and metallurgical processes, wind turbine drivetrains, water treatment blowers and pumps, construction and agricultural equipment, and on-highway/off-highway powertrain applications including trucks. The common traits are elevated speed, imperfect media, non-trivial temperature cycles, and low tolerance for downtime.

Construction that earns its keep

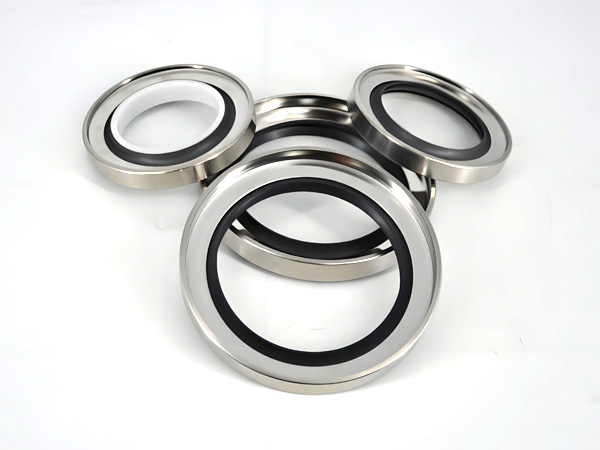

We pair a stainless-steel case (typically 304/316) for dimensional stability and corrosion resistance with a PTFE-based lip engineered around the application. Fillers are chosen on purpose: glass fiber for wear stability, carbon/graphite for better dry-running resilience and chemical breadth, bronze or MoS2 when PV loading and heat shedding dominate. A preloaded spring maintains contact pressure as the lip beds in, keeping friction predictable instead of spiky.

Variants and operating window

· Single vs double lip: Single seals the medium; double adds a dust barrier when contamination threatens.

· Spring-loaded versions: Compensate for slight eccentricity or axial movement.

· Combination seals: Blend scraping and sealing for light solids or mixed media.

· High-temperature builds: Tuned for steam, hot oils, and thermal cycling.

Typical ranges, to be validated per design: temperature roughly -65°C to +260°C; surface speeds up to about 20–30 m/s for standard builds; sustained differential pressure generally recommended within 0.2–0.6 MPa, with short excursions or reinforced designs up to about 0.8–1.0 MPa. Target shaft finish Ra 0.2–0.4 μm and hardness ≥55 HRC for stable life.

Selection cues that prevent postmortems

· Medium and temperature: Confirm chemical compatibility first, then check extremes and cycle rates.

· Speed-pressure tradeoff: Don’t push both to the limit; consider back-relief features, cooling, or split functions.

· Shaft and housing realities: Lead-in chamfers around 15–20°, measured runout and concentricity, generous radii on transitions.

· Lubrication and dust strategy: Prime the lip lightly; add dust exclusion on the air side when particles are present.

If it fails, read the scars: Burn marks suggest dry running; edge nicks hint at handling damage; abrasive tracks implicate hard particles; swelling or cracking points to chemistry.

Services that reduce your operational risk

· Fast delivery from standard stock: Over ten thousand SKU, including O-rings and oil seals, with common sizes on the shelf for urgent turnarounds.

· End-to-end customization: Material selection, structural design, and production testing aligned to your duty cycle—non-standard seals with standard-proof validation.

· Technical enablement: More than 30 years in sealing let us balance uptime and total cost—optimize geometry, lower service frequency, and cut inventory strain.

Company strengths, stated plainly

We run an integrated, physical manufacturing operation with a global supply footprint. Our products ship to 80+ countries. We operate a provincial-level innovation center and hold “Specialized and Innovative” as well as High-Tech enterprise recognitions. Within our industrial cluster, we’re a named key enterprise. As an established brand, NQKSF keeps broad coverage and ready stock for widely used sizes, which simplifies your planning.

Leaks don’t look expensive—until they stop a line. That sums up the job of a shaft seal in tough environments. NQKSF is PTFE stainless shaft seal series is built for the gray zone between “should be fine” and “keeps failing”: higher surface speeds, mixed media, temperature swings, slight runout—exactly where generic elastomer seals start to suffer.

Where it fits and why it matters

You’ll see the best return in pumps, industrial motors, gearboxes, engine auxiliaries, general machinery, robotic arms and industrial robots, hydraulic power units, chemical and metallurgical processes, wind turbine drivetrains, water treatment blowers and pumps, construction and agricultural equipment, and on-highway/off-highway powertrain applications including trucks. The common traits are elevated speed, imperfect media, non-trivial temperature cycles, and low tolerance for downtime.

Construction that earns its keep

We pair a stainless-steel case (typically 304/316) for dimensional stability and corrosion resistance with a PTFE-based lip engineered around the application. Fillers are chosen on purpose: glass fiber for wear stability, carbon/graphite for better dry-running resilience and chemical breadth, bronze or MoS2 when PV loading and heat shedding dominate. A preloaded spring maintains contact pressure as the lip beds in, keeping friction predictable instead of spiky.

Variants and operating window

· Single vs double lip: Single seals the medium; double adds a dust barrier when contamination threatens.

· Spring-loaded versions: Compensate for slight eccentricity or axial movement.

· Combination seals: Blend scraping and sealing for light solids or mixed media.

· High-temperature builds: Tuned for steam, hot oils, and thermal cycling.

Typical ranges, to be validated per design: temperature roughly -65°C to +260°C; surface speeds up to about 20–30 m/s for standard builds; sustained differential pressure generally recommended within 0.2–0.6 MPa, with short excursions or reinforced designs up to about 0.8–1.0 MPa. Target shaft finish Ra 0.2–0.4 μm and hardness ≥55 HRC for stable life.

Selection cues that prevent postmortems

· Medium and temperature: Confirm chemical compatibility first, then check extremes and cycle rates.

· Speed-pressure tradeoff: Don’t push both to the limit; consider back-relief features, cooling, or split functions.

· Shaft and housing realities: Lead-in chamfers around 15–20°, measured runout and concentricity, generous radii on transitions.

· Lubrication and dust strategy: Prime the lip lightly; add dust exclusion on the air side when particles are present.

If it fails, read the scars: Burn marks suggest dry running; edge nicks hint at handling damage; abrasive tracks implicate hard particles; swelling or cracking points to chemistry.

Services that reduce your operational risk

· Fast delivery from standard stock: Over ten thousand SKUs, including O-rings and oil seals, with common sizes on the shelf for urgent turnarounds.

· End-to-end customization: Material selection, structural design, and production testing aligned to your duty cycle—non-standard seals with standard-proof validation.

· Technical enablement: More than 30 years in sealing let us balance uptime and total cost—optimize geometry, lower service frequency, and cut inventory strain.

Company strengths, stated plainly

We run an integrated, physical manufacturing operation with a global supply footprint. Our products ship to 80+ countries. We operate a provincial-level innovation center and hold “Specialized and Innovative” as well as High-Tech enterprise recognitions. Within our industrial cluster, we’re a named key enterprise. As an established brand, NQKSF keeps broad coverage and ready stock for widely used sizes, which simplifies your planning.

FAQ

Q: Can you move quickly?

A: Standard PTFE stainless shaft seal sizes are typically ready to ship in 24–48 hours. Custom parts get firm lead times after drawings/samples are frozen.

Q: How do we control risk and cost?

A: We support frame agreements and safety stock. Post-failure analysis and parameter tweaks save you soft costs that never show on a unit price.

Q: Who supports my engineers?

A: Expect tolerance guides, surface treatment advice, assembly tooling and training; on-site checks and targeted tests when the stakes are high.

Q: What about iterative improvement?

A: We provide tear-down reports and corrective actions. If a filler change or back-pressure feature will help, we validate before you commit to volume.

What you’re really buying is fewer surprises. With the NQKSF PTFE stainless shaft seal series, the materials, geometry, and installation discipline are spelled out up front, and the supply/technical loop is tight enough to keep your uptime story intact. That’s how small parts make a large difference.
