What are the Seals Types on a Hydraulic Cylinder?

Number of hits：82025-08-22 14:12:52　

A hydraulic cylinder never works alone; its performance depends on the sealing and guiding stack that keeps pressure where it belongs and dirt where it can’t harm. In simple terms, a hydraulic cylinder seal is a barrier between the tube, piston, rod, and end cap. It must flex with tiny clearance changes, survive shear and extrusion from system pressure, and still deliver a predictable friction and back‑pumping behavior under dust, moisture, temperature swings, and shock. The first selection step is always motion: no relative movement means a static seal; any reciprocating or oscillating motion calls for a dynamic design.

Functions you actually rely on

· Pressure control and cleanliness: Maintain sealing force at both low and high pressure while keeping dust and moisture out to protect fluid and hardware.

· Leak control and blowout prevention: Build a tight seal around piston and rod, cut internal and external leakage, mitigate spikes that could rupture the interface.

· Cost and serviceability: Wear‑resistant profiles that install easily reduce downtime and labor over the life of the machine.

· Durability and adaptability: Hold performance in harsh climates and media, suiting construction, metals, and chemical plants.

· Safety and media resistance: Resist water, chemicals, and wear where compliance and process integrity matter.

Where each type belongs

· Piston seals: Between piston and bore to isolate pressure sides and keep efficiency high.

· Rod and buffer seals: Rod seals retain pressure; buffers absorb pressure peaks and vibration to protect the main lip.

· Wiper seals: Keep debris and liquids out; always pair with rod seals for a clean rod zone.

· Guide rings: Take side loads and prevent metal‑to‑metal contact on rods and pistons.

· Supporting pieces: Static O‑rings at end caps and ports; rotary seals for oscillating joints.

Typical numbers: Aim for Ra 0.2–0.4 µm on rods/bores; most cylinders run 16–32 MPa with higher transient peaks, so set extrusion gaps and support hardness to the worst‑case map.

Materials and why they’re chosen

· NBR: Versatile with mineral oils, roughly −40 to 125 °C.

· FKM: Handles heat and additive‑rich oils, up to about 250 °C for long service intervals.

· HNBR: Good balance of heat, oil, and ozone resistance for mobile hydraulics.

· PU (polyurethane): Go‑to for high‑pressure reciprocating duty thanks to wear and extrusion resistance; common window −35 to 110 °C.

· PTFE (filled): Ultra‑low friction and chemical resistance for high speed, micro‑stroke, frequent reversals, or dry starts; often energized with springs and backed up.

Material choice isn’t only fluid and temperature. It’s also about gaps, surface state, speed‑pressure combination, and how oil returns and heat leaves the groove.

Practical design and assembly touches

· Give wipers top billing: Metal‑cased twin‑lip wipers extend rod‑seal life in dusty, wet yards; if the wiper misses, the rod seal pays.

· Back‑pressure and throttling: Match groove throttling and relief with the speed curve to avoid heat pockets and lip bottoming.

· Gaps and supports: Set extrusion gaps and support hardness to peak differential pressure and top temperature; step grooves or segmented back‑ups when needed.

· Lube and fitment: Use a compatible thin film at assembly, press in evenly in small steps, and avoid lip twisting or rolling.

Where hydraulic cylinder seals are used

· Construction and agriculture equipment: Excavators, loaders, rollers, booms, harvesters.

· Industrial machinery and metal forming: Presses, forges, auxiliary cylinders in steel plants.

· Material handling and port machinery: Forklifts, reach stackers, telehandlers.

· Energy systems: Wind pitch/yaw cylinders, oil and gas fracturing units.

· Water and marine: Gates, deck machinery, winches.

NQKSF supply model and company strengths

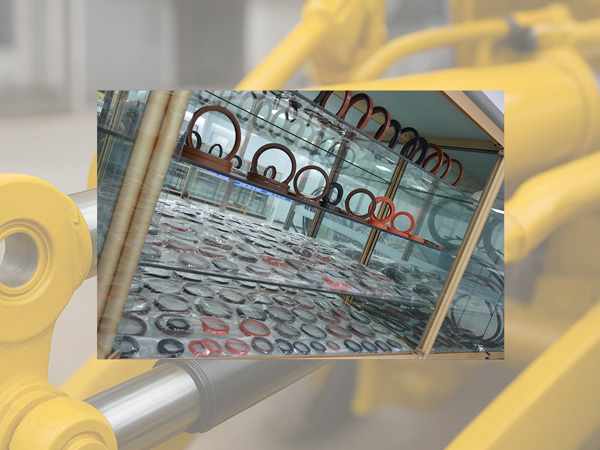

· Standard parts in stock and fast dispatch: Broad coverage across O‑rings, oil seals, and cylinder kits; inventory positioned for urgent needs.

· Full‑cycle customization: Material selection, profile design, prototypes, and bench/field tests for non‑standard duties.

· Technical enablement: 30+ years of field practice to tune grooves, fits, surfaces, and cut leakage and downtime.

Highlights:

In‑house manufacturing; industry leadership; wide model coverage with stock; shipments to 80+ countries; partnerships with well‑known global brands; provincial technology innovation center; specialized and innovative enterprise; high‑tech enterprise; leading role inside a specialized industrial cluster.

FAQ

Q: Can you cross‑reference multiple platforms quickly?

A: Yes—by OEM codes, samples, or three‑dimension sets (ID/OD/width and groove). We also offer durability upgrades in lip geometry and material.

Q: How do you manage pressure and temperature extremes?

A: We supply gap‑support‑material maps based on peak differential pressure and max temperature; PTFE plus back‑up designs where warranted.

Q: Lead time and MOQ?

A: Stock ships in 3–5 days; custom in 7–15. MOQ depends on size and compound; urgent pilot lots are supported.

Q: Quality and traceability documents?

A: Material batch IDs, dimension/performance records, optional type tests or third‑party reports; barcoded batch traceability.

Q: Stocking and packaging?

A: Moisture/dust‑protected inner packs, unified cartons, and annual safety‑stock agreements to avoid supply gaps.

One line to close: when profile, compound, groove, and assembly reflect the duty you actually run, cylinders hold pressure cleanly and for longer—exactly what NQKSF builds into its hydraulic cylinder seal series.
