V-Packings for Demanding Applications

Number of hits：132025-08-06 11:29:11　

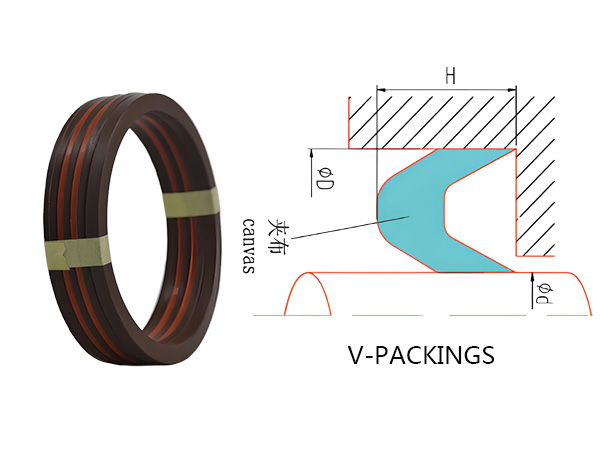

You know what a V-packing stack is: male adapter on top, several V-rings in the middle, female adapter below. Under pressure—up to 40 MPa—the female adapter pushes the V-rings apart. Each ring squeezes out a bit, grips the piston rod tight. Fluid tries to pass the first ring but the pressure drops; then the second ring sees less, third even less. By the end, nothing gets through.

That’s the basic structure. Now, materials matter. The oldfashioned canvas‑reinforced rubber is still widely used. For standard hydraulic oil, we go NBR; want higher temperature or oil resistance, we pick FKM.

We’ve applied these seals in metallurgy cylinders, large stamping presses, mining hydraulic arms, and even fracturing pumps. Some systems shift rapidly, some hold static pressure for hours—either way, you need seals that don't slip, or sag. V-packings are adjustable, so we can tighten or loosen compression just by how we install the female adapter.

We carry standard sets — over thousands of V‑packing SKUs stocked for fast shipment worldwide. If your cylinder is non-standard, we offer full custom design: let us know your pressure, stroke, medium, temperature—we handle the rest, from drawing to prototype to batch production. Our tech team, with 30+ years sealing experience, reviews your working conditions and proposes optimal design.

We’re recognized as a high‑tech enterprise, a provincial innovation center, and we’re in China’s specialized‑and‑innovative manufacturer list. Our manufacturing plant handles everything—so quality stays consistent. Today we serve over 80 countries, supplying hydraulic OEMs, machine builders, mining operations, heavy equipment manufacturers … anyone who uses fluid cylinders under load.

Honestly, V‑packing looks simple. But inside, it’s proven—progressive sealing across rings and material count. It deals with pressure surges, wear, alignment variations. And under real tough conditions, we’ve seen single-lip seals fail while V-stacks continue. That’s why V-packings series still gets chosen.

Want to talk specifics? We can walk through your cylinder, line speed, pressure peaks, temperature range, lubricant type. Let’s pick the right material: canvas/NBR, FKM. Then we’ll optimize number of rings, adapter heights, lip shape. That way your seal lasts, not just for a week—but months or years.

The V-packings series from NQKSF isn't the fanciest, but it’s engineered to work day in, day out—across metallurgy, mining, oil‑gas, construction hydraulics. Reach out, and we’ll make it fit your system.
