VA/VS V-Ring Seal Series for Versatile Shaft Protection in Industrial Applications

Number of hits：192025-08-05 09:24:42　

When it comes to dealing with rotating shafts in dusty or damp conditions, engineers often turn to a simple yet effective sealing option—what many call the V-ring seal. Among them, the VA/VS V-ring seal series is something that’s shown solid results, especially when reliability and ease of replacement are key concerns.

Unlike many seals that rely on a rigid shell or backing, VA/VS V-rings are molded entirely from rubber. No reinforcement. Just pure elastomer doing the job. That might sound simple, but it's part of what makes them surprisingly useful in real-world factory or field setups. You stretch one over a shaft—it holds tight—and the flexible lip presses against a perpendicular surface like a flange, bearing face, or even the metal case of another seal.

The trick is how it moves. It rotates with the shaft, yes—but the lip stays in contact with the static surface. So, while the shaft spins, the V-ring lip flings away contaminants like dust, water spray, or grease splatter. This makes it more than just a barrier—it's a dynamic flinger, built into a single part.

Some folks use the VA/VS V-rings as primary seals when the working environment isn’t too aggressive. But they really shine when working in tandem with another rotary shaft seal. Think of them as the outer shield in a two-layer defense system: the front guard for dust, moisture, and metal shavings—so the main oil seal inside doesn’t take all the hits.

One of the things we've noticed on the shop floor and in maintenance bays is just how forgiving VA/VS seals are. The shaft doesn’t have to be perfectly aligned. Even if there’s slight wobble or axial shift, these V-rings usually adapt thanks to their hinged body and conical lip. That flexibility keeps them in operation longer, especially on older machinery where perfect tolerances have long since faded.

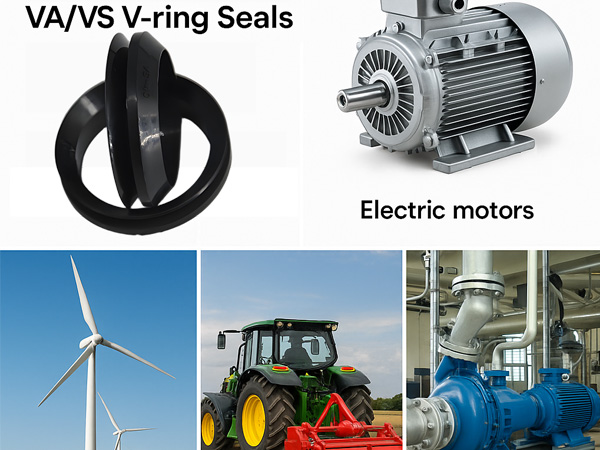

The VA/VS styles seals are commonly used in:

· Electric motor shafts

· Pump drive ends

· Gearbox input/output ends

· Conveying rollers

· Fan assemblies

· Agricultural machinery

· Wind turbine component hubs

Material options matter, too. In the NQKSF offering, you’ll find options like:

· NBR (Nitrile) for standard temperature and oil resistance needs;

· FKM (Viton) for more heat-intensive setups, like in combustion engine areas;

Other blends for high ozone exposure or chemicals—though those tend to be application-specific.

Installers appreciate how simple these are to handle. No need for special tools—stretch it over the shaft, slide it to the right spot, done. For cases where the part can’t be slipped on due to other components, we’ve seen techs cut the V-ring, wrap it, then rejoin the cut with a cold-bonding agent or mechanical locking. Not ideal, but it works when downtime’s not an option.

From a design standpoint, you’re not limited either. Need extra grease relief? Use dual V-rings facing opposite directions. Worried about splashback? Position the ring to let expelled grease escape between lip and flange. Want an extra layer of backup? Add a V-ring outside your labyrinth seal to reinforce it.

At NQKSF, we supply ready-to-ship standard VA/VS V-ring seals in a wide variety of shaft diameters, ranging from small instrument drives to large-scale gearbox systems. The warehouse inventory is set up to support urgent replacements—no wait times for standard profiles. If your project needs something outside the norm—say a special blend of material, lip angle, or width—we handle full customization, from prototype to volume delivery.

What really makes the VA/VS V-ring family valuable is their cost-effectiveness combined with function. Whether you’re trying to squeeze a few more years out of aging equipment, or you’re specifying protection for newly designed drives, these seals often buy you peace of mind at very little cost.

Some industry segments where VA/VS seals prove their worth daily:

· Automotive transmission and differential systems

· Small-scale hydraulics

· Wind energy generator hubs

· Food-grade conveyors (NBR/FKM with FDA compliance)

· Marine pump shaft seals (where splash and salt matter)

· Agricultural tillers and power tools

· Industrial fans and HVAC drives

Keep in mind: a well-installed VA or VS seal won’t ask much—just that you give it a clean shaft, avoid sharp edges, and don’t bury it in fluid. Let it breathe and fling, and it’ll serve you longer than most rotating parts around it.

If you want help choosing the right seal or need tech input on shaft tolerances, the NQKSF support team is available anytime. Whether you're in OEM procurement, maintenance, or R&D, we speak your language—and we know how much downtime costs. From design advice to on-site replacement guidance, we’ve got your seal covered.
