Seal Selection for Hydraulic Pumps and Motors in Oil Plants

Number of hits：92025-07-03 15:36:39　

In the petroleum industry, hydraulic systems are at the heart of drilling platforms, refineries, and offshore rigs. Among the most critical components are hydraulic pumps and motors, which operate under high pressure and often in harsh environments. Keeping these components sealed properly ensures consistent performance and prevents environmental or equipment damage.

But what types of seals are most suitable for these applications?

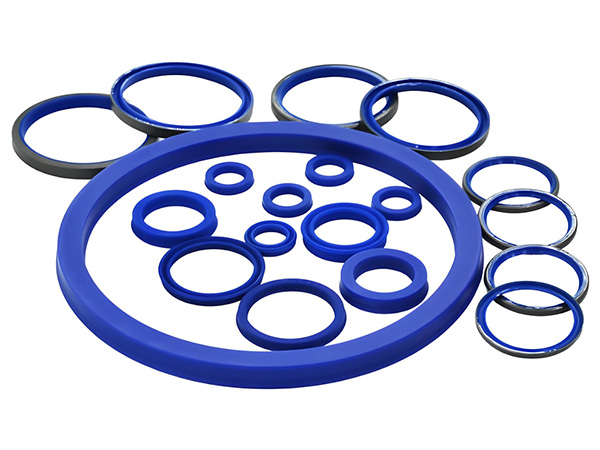

Common Seal Types in Oil Plant Hydraulics
Rod Seals – These seals prevent hydraulic fluid from leaking out of the cylinder and are essential for maintaining pressure inside the system. For oil plants, materials like HNBR, FKM, or PTFE with backup rings are often chosen to resist aggressive fluids and temperature fluctuations.

Piston Seals – Used to contain fluid between pressure chambers, piston seals must withstand bidirectional pressure and long stroke cycles. Designs like double-acting U-cups are frequently used.

Wiper Seals – Especially important in dusty or outdoor environments, wipers clean the piston rod as it retracts into the cylinder, preventing contamination from entering the system.

O-Rings and Backup Rings – These are used in static sealing zones, often made from fluorocarbon or nitrile rubber, providing reliable sealing at rest and under pressure spikes.

Questions from the Field
Q1: Are standard seals suitable for offshore oil rigs?
Not necessarily. Offshore environments often require corrosion-resistant, temperature-tolerant, and fluid-compatible sealing materials. Standard rubber seals may not perform well under such extremes.

Q2: How does temperature affect seal selection?
In oil plants, hydraulic systems may face both sub-zero and high-temperature environments. Seals must maintain elasticity and sealing ability across a wide temperature range. This is why PTFE, FKM, and HNBR are common choices.

Q3: What leads to premature seal failure in hydraulic motors?
Factors include improper installation, fluid incompatibility, pressure spikes, and abrasion. Choosing the right material and ensuring correct installation can significantly extend seal service life.

The selection of sealing components for hydraulic pumps and motors in petroleum environments should be guided by fluid type, pressure range, temperature conditions, and dynamic motion. No single seal fits every application, and often, a combination of rod seals, wipers, piston seals, and backup rings is required for full protection.
