What Types of Robotic Arm Seals Are There?

Number of hits：312025-06-25 10:13:52　

In the rapidly growing field of automation, robotic arms play a central role across industries such as automotive manufacturing, electronics assembly, packaging, logistics, and even medical technology. To ensure smooth, precise, and long-lasting performance, sealing components are critical in protecting the internal systems of robotic arms from external contaminants, fluid leaks, and wear.

But what kinds of seals are actually used in robotic arms? And how are they selected based on the robot's working conditions? In this article, we will explore the main types of seals used in robotic arms and answer common questions related to their application.

Main Types of Robotic Arm Seals

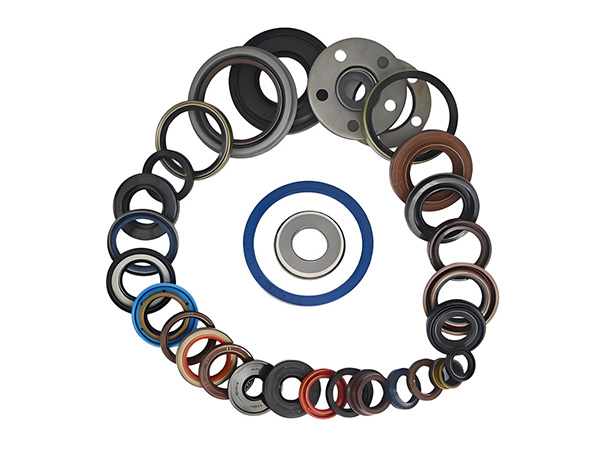

Rotary Shaft Seals (Oil Seals)

These are used in joints or gearboxes where shafts rotate at high speeds. They prevent lubricant leakage while keeping out dust or moisture. Materials like NBR or FKM are commonly used depending on the heat and fluid resistance required.

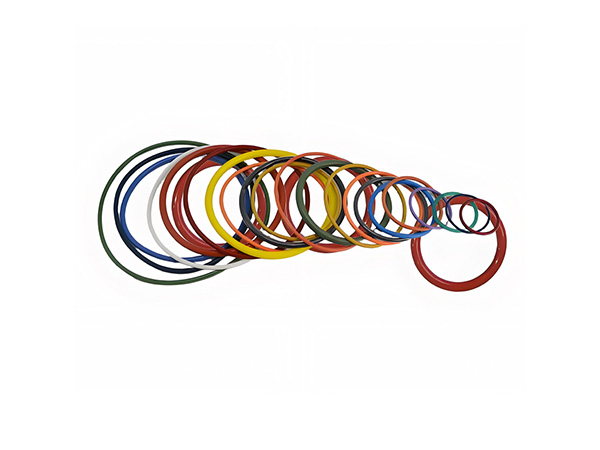

O-Rings

Found in static or dynamic joints, O-rings are used to prevent fluid or air leakage between tightly fitted components. They are typically made from NBR, EPDM, or silicone, depending on the temperature and chemical environment.

Rod and Piston Seals

For robotic arms powered by hydraulic or pneumatic cylinders, rod and piston seals maintain pressure and prevent internal or external leaks. These seals must endure frequent motion and pressure cycles.

Dust Wipers Seals

Positioned at the entry points of moving parts, these seals wipe away dirt, chips, or moisture, protecting internal components from wear and contamination.

Custom Molded Seals

Some advanced robotic systems use seals specifically designed for tight spaces or complex movements. These may combine multiple sealing functions in one part, and are often made from high-performance elastomers or PTFE composites.

Questions & Answers: Robotic Arm Sealing Basics

Q1: Why are seals so important in robotic arms?

A: Seals protect sensitive components from dust, fluids, and high friction, ensuring reliability, accuracy, and longer service life. Without proper sealing, robotic arms would fail prematurely due to wear or contamination.

Q2: What factors determine seal selection in robotic applications?

A: Factors include temperature range, chemical exposure, movement type (rotary or linear), speed, pressure, and required service life. Environmental conditions like humidity, dust, or food safety standards may also influence material choice.

Q3: Are all robotic arm seals standard in size?

A: Not always. While some parts use standardized seals (like O-rings), many robotic arms require custom-sized or specially shaped seals for compact joints and complex kinematics.

Q4: What’s the biggest challenge in robotic arm sealing?

A: Balancing compact design, flexibility, and sealing efficiency. Robotic joints often have limited space and constant motion, which puts unique demands on the durability and shape of sealing components.

Conclusion

Robotic arm seals may seem like small components, but they play a huge role in maintaining system performance. From oil seals and O-rings to dust wipers and custom solutions, the right sealing strategy is essential to the reliability and efficiency of any robotic system. Engineers should always consider movement, environment, and material compatibility when selecting sealing components.

Have more questions about robotic arm sealing solutions? Reach out to a NKQSF sealing expert for personalized guidance.
